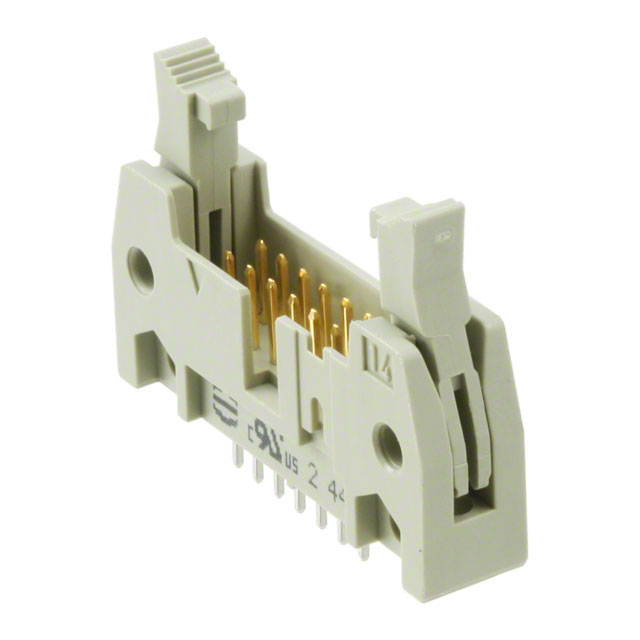

09185146902

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Packaging :

Bulk

Contact Shape :

Square

IEC Conformance :

yes

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

7 Weeks

Fastening Type :

Latch Lock/Eject Hooks, Long

Number of Positions :

14

Mixed Contacts :

No

Contact Type :

Male Pin

Shrouding :

Shrouded - 4 Wall

Contact Finish - Mating :

NOT SPECIFIED

Length :

37.4mm

Body Breadth :

0.331 inch

Number Of PCB Rows :

2

Number of Conductors :

ONE

Mounting Type :

Through Hole

Polarization Key :

CTR W/GUIDE SLOTS

Number of Rows :

2

Contact Material :

COPPER ALLOY

Color :

Grey

Dielectric Withstanding Voltage :

1000VAC V

Orientation :

Straight

Operating Temperature :

-55°C~125°C

Termination :

Solder

Contact Finish - Post :

Tin

DIN Conformance :

yes

Rated Current (Signal) :

1A

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

MIL Conformance :

No

REACH SVHC :

No SVHC

HTS Code :

8536.69.40.40

Contact Length - Post :

0.177 4.50mm

Feature :

Keying Slot, Mounting Flange

RoHS Status :

ROHS3 Compliant

Row Spacing - Mating :

0.100 (2.54mm)

UL Flammability Code :

94V-0

Pitch - Mating :

0.100 2.54mm

Gender :

Male

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Color :

Gray

Mating Contact Pitch :

0.1 inch

PCB Contact Pattern :

RECTANGULAR

Style :

Board to Cable/Wire

Series :

SEK

Number of Positions Loaded :

All

Reliability :

COMMERCIAL

Pbfree Code :

yes

Overall Contact Length :

0.713 18.10mm

Option :

GENERAL PURPOSE

ECCN Code :

EAR99

Contact Length - Mating :

0.240 6.10mm

Insulation Height :

0.681 17.30mm

Reference Standard :

UL

Insulation Resistance :

1000000000Ohm

Mount :

Through Hole

Filter Feature :

No

Additional Feature :

STANDARD: IEC 60603-3

Connector Type :

Header

Depth :

8.5mm
