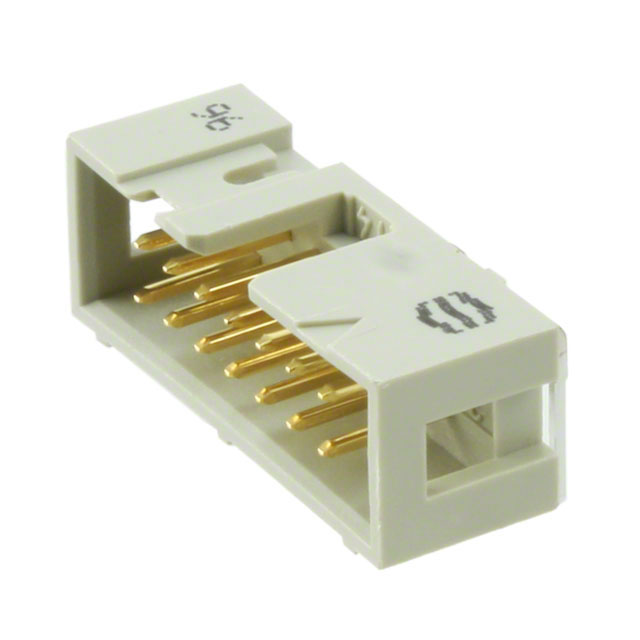

09185146323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13

Shrouding :

Shrouded - 4 Wall

Row Spacing - Mating :

0.100 (2.54mm)

Contact Finish - Mating :

NOT SPECIFIED

Polarization Key :

CTR W/GUIDE SLOTS

Lead Pitch :

2.54mm

Dielectric Withstanding Voltage :

1000VAC V

Number of Poles :

14

Factory Lead Time :

4 Weeks

Contact Shape :

Square

Mating Contact Pitch :

0.1 inch

Number of Positions Loaded :

All

Contact Length - Mating :

0.242 6.15mm

Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole, Right Angle

Contact Material :

COPPER ALLOY

Mount :

Through Hole

RoHS Status :

ROHS3 Compliant

Color :

Grey

Depth :

11.99mm

Reference Standard :

UL

Contact Plating :

Gold

Filter Feature :

No

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Operating Temperature :

-55°C~125°C

Termination :

Solder

Test Voltage :

1kV

IEC Conformance :

yes

Connector Type :

Header

Length :

11.8mm

Housing Material :

Polybutylene

Contact Gender :

Male

Series :

SEK

Pbfree Code :

yes

Orientation :

RIGHT ANGLE

REACH SVHC :

No SVHC

Contact Current Rating :

1A

Style :

Board to Cable/Wire

Max Current Rating :

1A

PCB Contact Pattern :

RECTANGULAR

Contact Resistance :

20mOhm

Insulation Color :

Gray

Packaging :

Tray

Number of Conductors :

ONE

Rated Current (Signal) :

1A

DIN Conformance :

yes

Voltage - Rated DC :

350V

Fastening Type :

Latch Holder

Number of Rows :

2

Reliability :

COMMERCIAL

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Height :

12.2mm

Lead Length :

29mm

Width :

25.4mm

Hole Diameter :

900 μm

Contact Type :

Male Pin

Contact Length - Post :

0.114 2.90mm

Pitch - Mating :

0.100 2.54mm

Option :

GENERAL PURPOSE

Insulation Height :

0.366 9.30mm

Insulation Resistance :

1GOhm

MIL Conformance :

No

ECCN Code :

EAR99

Voltage - Rated AC :

350V

HTS Code :

8536.69.40.40

Material Flammability Rating :

UL94 V-0

Current Rating :

1A

Working Voltage :

350V

Number Of PCB Rows :

2

Feature :

Keying Slot
