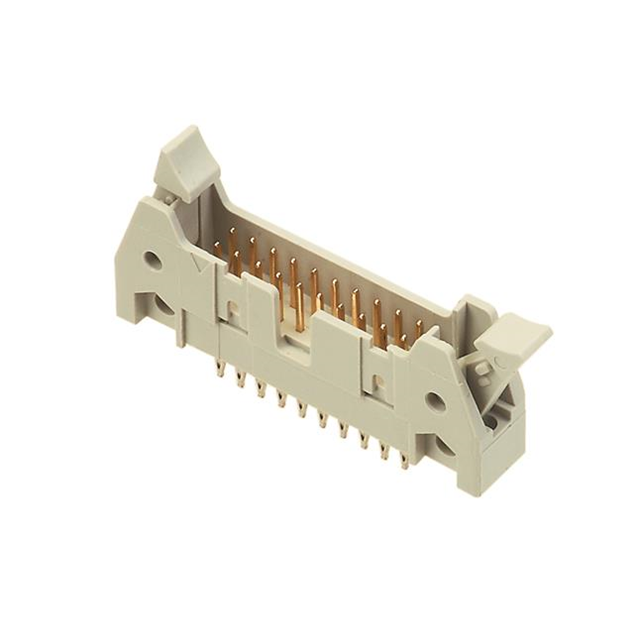

09185145919
Or copy the link below:
- Mfr.Part #
- 09185145919
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 2.54MM
- Stock
- 40,651
- In Stock ：
- 40,651
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Through Hole
- Number of Rows :
- 2
- Termination :
- Press-Fit, Solder
- Orientation :
- Straight
- Contact Material :
- COPPER ALLOY
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Grey
- Pitch - Mating :
- 0.100 2.54mm
- Series :
- SEK
- Style :
- Board to Cable/Wire
- Overall Contact Length :
- 0.713 18.10mm
- Contact Type :
- Male Pin
- Insulation Color :
- Gray
- Contact Shape :
- Square
- Contact Length - Mating :
- 0.240 6.10mm
- Packaging :
- Bulk
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Length - Post :
- 0.177 4.50mm
- Number of Positions :
- 14
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Latch Lock/Eject Hooks, Short
- Contact Finish - Mating :
- Gold
- Operating Temperature :
- -55°C~125°C
- Current Rating :
- 1A
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Contacts :
- 18
- Mount :
- Through Hole
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.690 17.53mm
- Feature :
- Keying Slot, Mounting Flange
- Datasheets
- 09185145919
09185145919 Documents
SEK Series 2-Row Header Press-Fit, Solder Copper Alloy Bulk Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 14-Position Board to Cable/Wire 0.690 17.53mm Height
09185145919 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the SEK Series, it belongs to the range of products of that series.A number of features make the Keying Slot, Mounting Flange feature more powerful.Through Hole represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
09185145919 Features
SEK series
09185145919 Applications
There are a lot of HARTING
09185145919 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
