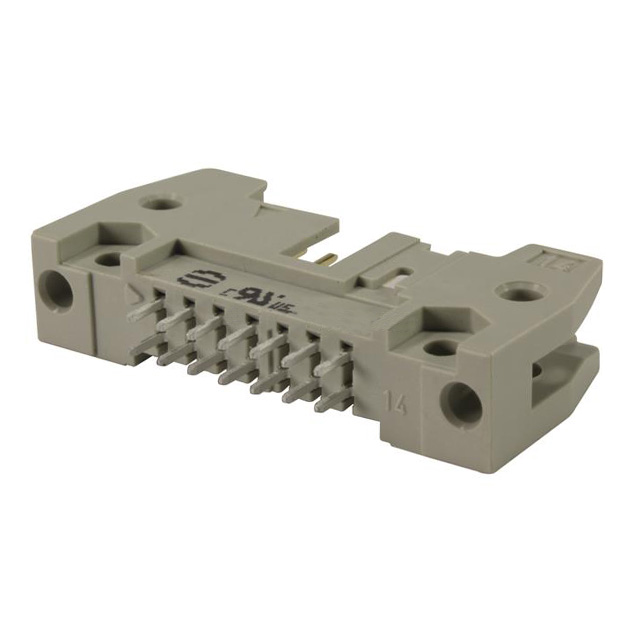

09185145904

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Feature :

Keying Slot, Mounting Flange

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

RoHS Status :

ROHS3 Compliant

Shrouding :

Shrouded - 4 Wall

Contact Length - Post :

0.114 2.90mm

Termination :

Solder

ECCN Code :

EAR99

Option :

GENERAL PURPOSE

Length :

37.4mm

Number of Conductors :

ONE

MIL Conformance :

No

Polarization Key :

CTR W/GUIDE SLOTS

Pitch - Mating :

0.100 2.54mm

Operating Temperature :

-55°C~125°C

PCB Contact Pattern :

RECTANGULAR

Current Rating :

2A

Series :

SEK

Rated Current (Signal) :

1A

Contact Finish - Post :

Tin

Number Of PCB Rows :

2

Number of Rows :

2

Number of Positions :

14

DIN Conformance :

yes

Connector Type :

Header

Contact Length - Mating :

0.228 5.80mm

Mixed Contacts :

No

Contact Shape :

Square

Depth :

8.5mm

Insulation Resistance :

1000000000Ohm

Body Breadth :

0.331 inch

IEC Conformance :

yes

Row Spacing - Mating :

0.100 (2.54mm)

Color :

Grey

Plating Thickness :

30μin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Contact Pitch :

0.1 inch

Insulation Height :

0.681 17.30mm

Style :

Board to Cable/Wire

Additional Feature :

STANDARD: IEC 60603-3

HTS Code :

8536.69.40.40

Number of Positions Loaded :

All

Contact Material :

COPPER ALLOY

Contact Type :

Male Pin

Factory Lead Time :

7 Weeks

Reliability :

COMMERCIAL

Contact Finish - Mating :

Gold

Insulation Color :

Gray

Reference Standard :

UL

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Fastening Type :

Latch Lock/Eject Hooks, Long

UL Flammability Code :

94V-0

Overall Contact Length :

0.650 16.51mm

Mount :

Through Hole

Dielectric Withstanding Voltage :

1000VAC V

Orientation :

Straight

Pbfree Code :

yes

Material Flammability Rating :

UL94 V-0

Filter Feature :

No

Packaging :

Bulk

Mounting Type :

Through Hole
