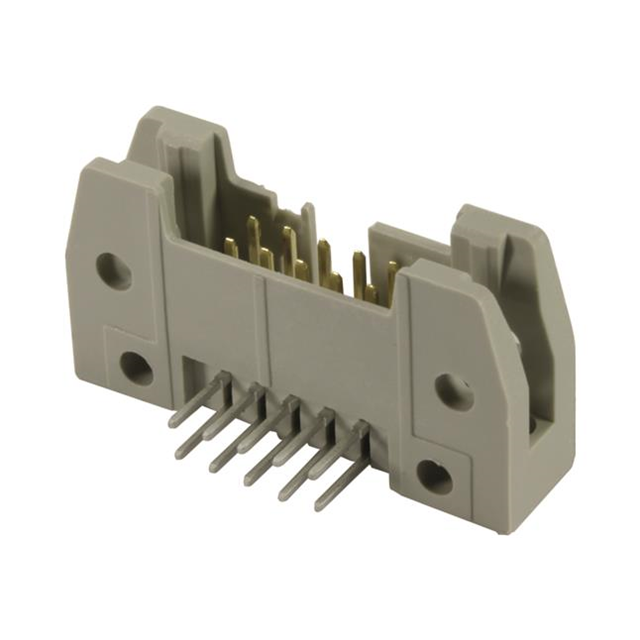

09185107923

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Style :

Board to Cable/Wire

Mount :

Through Hole

MIL Conformance :

No

Color :

Grey

Connector Type :

Header

Option :

GENERAL PURPOSE

Contact Length - Mating :

0.240 6.10mm

Filter Feature :

No

Reference Standard :

UL

Body Depth :

0.681 inch

Rated Current (Signal) :

2A

Contact Length - Post :

0.114 2.90mm

Factory Lead Time :

7 Weeks

Shrouding :

Shrouded - 4 Wall

Mounting Type :

Through Hole, Right Angle

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Pbfree Code :

yes

ECCN Code :

EAR99

Termination :

Solder

Mixed Contacts :

No

Number of Rows :

2

Pitch - Mating :

0.100 2.54mm

Contact Type :

Male Pin

UL Flammability Code :

94V-0

Series :

SEK

Fastening Type :

Push-Pull

Durability :

50 Cycles

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Packaging :

Bulk

Reliability :

COMMERCIAL

Number Of PCB Rows :

2

Length - Termination :

0.114 inch

Body Breadth :

0.335 inch

Number of Positions Loaded :

All

Insulation Height :

0.335 8.51mm

Operating Temperature :

-55°C~125°C

Mating Contact Pitch :

0.1 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

DIN Conformance :

yes

IEC Conformance :

yes

Feature :

Keying Slot, Mounting Flange

Polarization Key :

POLARIZED HOUSING

Contact Finish - Mating :

NOT SPECIFIED

HTS Code :

8536.69.40.40

PCB Contact Pattern :

RECTANGULAR

Contact Shape :

Square

Contact Material :

COPPER ALLOY

RoHS Status :

ROHS3 Compliant

Number of Positions :

10

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Color :

Gray
