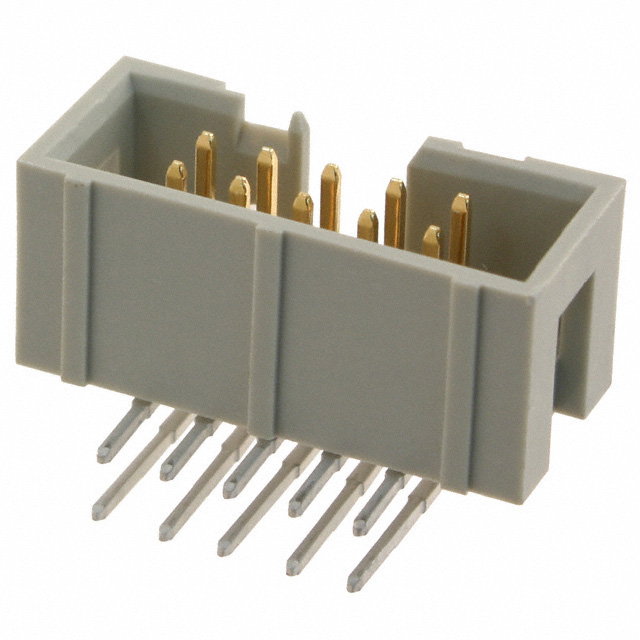

09185106323
Or copy the link below:
- Mfr.Part #
- 09185106323
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 10POS 2.54MM
- Stock
- 7
- In Stock ：
- 7
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.100 2.54mm
- Lead Length :
- 29mm
- Polarization Key :
- CTR W/GUIDE SLOTS
- Contact Shape :
- Square
- Insulation Height :
- 0.366 9.30mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number of Conductors :
- ONE
- Contact Material :
- COPPER ALLOY
- Hole Diameter :
- 900 μm
- Orientation :
- RIGHT ANGLE
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Latch Holder
- REACH SVHC :
- No SVHC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Rated Current (Signal) :
- 1A
- Lead Free :
- Lead Free
- UL Flammability Code :
- 94V-0
- Voltage - Rated AC :
- 350V
- Packaging :
- Tray
- Number of Positions Loaded :
- All
- Number of Poles :
- 10
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Filter Feature :
- No
- Additional Feature :
- STANDARDS: DIN EN 60603-13; IEC 60603-13
- Flammability Rating :
- UL94 V-0
- Voltage - Rated DC :
- 350V
- Pbfree Code :
- yes
- DIN Conformance :
- yes
- Working Voltage :
- 350V
- Contact Current Rating :
- 1A
- RoHS Status :
- ROHS3 Compliant
- PCB Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- Feature :
- Keying Slot
- MIL Conformance :
- No
- Length :
- 20.32mm
- Mount :
- Through Hole
- Insulation Resistance :
- 1GOhm
- Lead Pitch :
- 2.54mm
- Contact Resistance :
- 20mOhm
- Mating Contact Pitch :
- 0.1 inch
- Housing Material :
- Polybutylene
- Factory Lead Time :
- 4 Weeks
- Connector Type :
- Header
- Contact Length - Post :
- 0.114 2.90mm
- Current Rating :
- 1A
- Series :
- SEK
- Color :
- Grey
- Number of Rows :
- 2
- Reliability :
- COMMERCIAL
- Reference Standard :
- UL
- Width :
- 20.3mm
- IEC Conformance :
- yes
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~125°C
- Depth :
- 11.99mm
- Test Voltage :
- 1kV
- Contact Finish - Mating :
- NOT SPECIFIED
- Insulation Color :
- Gray
- Number Of PCB Rows :
- 2
- Contact Plating :
- Gold
- Mixed Contacts :
- No
- Max Current Rating :
- 1A
- Contact Gender :
- Male
- Option :
- GENERAL PURPOSE
- Contact Type :
- Male Pin
- Contact Length - Mating :
- 0.242 6.15mm
- Mounting Type :
- Through Hole, Right Angle
- Style :
- Board to Cable/Wire
- Datasheets
- 09185106323
SEK Series 2-Row Header Solder Copper Alloy Tray Through Hole, Right Angle NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.366 9.30mm Height
09185106323 Overview
Packaging is Header.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the SEK Series, it can be found in this category.There are also other features such as STANDARDS: DIN EN 60603-13; IEC 60603-13, to name only a few.With its Keying Slot feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -55°C~125°C Operating Temperature.
09185106323 Features
SEK series
09185106323 Applications
There are a lot of HARTING
09185106323 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
