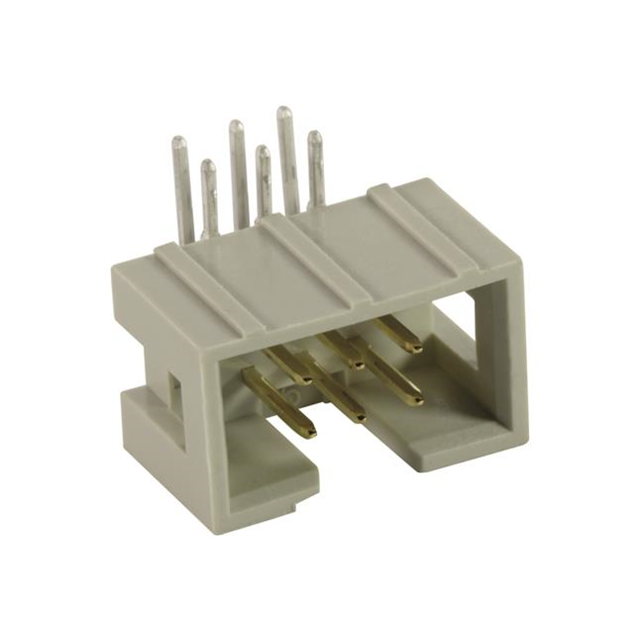

09185106321

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Pbfree Code :

yes

Termination :

Solder

Insulation Color :

Gray

MIL Conformance :

No

Filter Feature :

No

Number of Conductors :

ONE

Number Of PCB Rows :

2

Shrouding :

Shrouded - 4 Wall

Length :

20.32mm

Mounting Type :

Through Hole, Right Angle

Voltage - Rated :

500V

Current Rating :

1A

Contact Gender :

Male

Connector Type :

Header

Feature :

Keying Slot

Contact Length - Mating :

0.240 6.10mm

Pitch - Mating :

0.100 2.54mm

Rated Current (Signal) :

2A

Row Spacing - Mating :

0.100 (2.54mm)

Reliability :

COMMERCIAL

Contact Length - Post :

0.177 4.50mm

Series :

SEK

Orientation :

RIGHT ANGLE

Color :

Grey

Material Flammability Rating :

UL94 V-0

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Type :

Male Pin

Number of Positions Loaded :

All

Contact Finish - Mating :

NOT SPECIFIED

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13

Number of Rows :

2

Mixed Contacts :

No

Mating Contact Pitch :

0.1 inch

Packaging :

Bulk

Contact Shape :

Square

Body Breadth :

0.366 inch

Style :

Board to Cable/Wire

Factory Lead Time :

10 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-55°C~125°C

Mount :

Through Hole

Insulation Height :

0.366 9.30mm

IEC Conformance :

yes

Polarization Key :

POLARIZED HOUSING

Option :

GENERAL PURPOSE

Fastening Type :

Latch Holder

UL Flammability Code :

94V-0

Number of Positions :

10

PCB Contact Pattern :

RECTANGULAR

RoHS Status :

ROHS3 Compliant

Contact Material :

COPPER ALLOY

Depth :

11.99mm

DIN Conformance :

yes

Reference Standard :

UL
