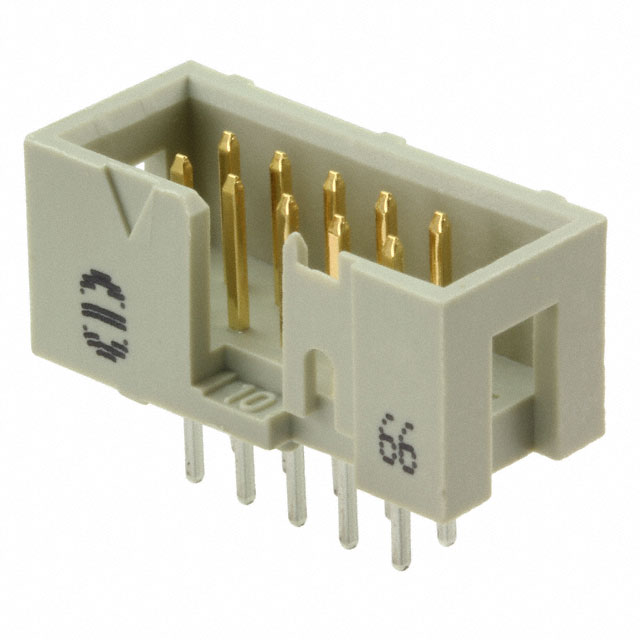

09185105324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Depth :

9.2mm

Factory Lead Time :

7 Weeks

Contact Finish - Mating :

Gold

Row Spacing - Mating :

0.100 (2.54mm)

Contact Shape :

Square

Orientation :

Straight

UL Flammability Code :

94V-0

Feature :

Keying Slot

Pbfree Code :

yes

REACH SVHC :

No SVHC

Mount :

Through Hole

Reliability :

COMMERCIAL

Plating Thickness :

30μin

Number Of PCB Rows :

2

Reference Standard :

UL

Material Flammability Rating :

UL94 V-0

Pitch - Mating :

0.100 2.54mm

Series :

SEK

Mounting Type :

Through Hole

Filter Feature :

No

Mating Contact Pitch :

0.1 inch

Gender :

Male

Termination :

Solder

Insulation Color :

Gray

Body Breadth :

0.366 inch

Current Rating :

2A

IEC Conformance :

yes

Mixed Contacts :

No

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13

Option :

GENERAL PURPOSE

Color :

Grey

Number of Positions :

10

Length :

20.32mm

Insulation Height :

0.350 8.89mm

Polarization Key :

POLARIZED HOUSING

Fastening Type :

Latch Holder

Operating Temperature :

-55°C~125°C

DIN Conformance :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Rated Current (Signal) :

2A

RoHS Status :

ROHS3 Compliant

Contact Length - Post :

0.114 2.90mm

Number of Conductors :

ONE

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Contact Type :

Male Pin

Contact Material :

COPPER ALLOY

Style :

Board to Cable/Wire

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Shrouding :

Shrouded - 4 Wall

Packaging :

Bulk

Contact Finish - Post :

Tin

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

2

Contact Length - Mating :

0.242 6.15mm

Connector Type :

Header

MIL Conformance :

No
