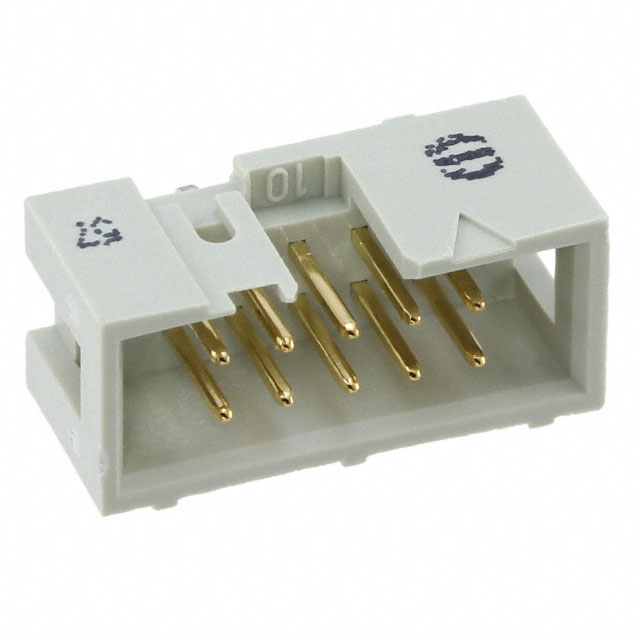

09185105323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Fastening Type :

Latch Holder

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Polarization Key :

CTR W/GUIDE SLOTS

Mount :

Through Hole

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13

Length :

20.32mm

Material Flammability Rating :

UL94 V-0

MIL Conformance :

No

Insulation Color :

Gray

Contact Length - Mating :

0.242 6.15mm

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Insulation Height :

0.366 9.30mm

Contact Finish - Mating :

Gold

Pitch - Mating :

0.100 2.54mm

REACH SVHC :

No SVHC

Contact Material :

COPPER ALLOY

RoHS Status :

ROHS3 Compliant

Mating Contact Pitch :

0.1 inch

Depth :

11.99mm

Number Of PCB Rows :

2

Pbfree Code :

yes

Plating Thickness :

30μin

Contact Shape :

Square

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Rated Current (Signal) :

1A

DIN Conformance :

yes

Operating Temperature :

-55°C~125°C

Feature :

Keying Slot

Number of Conductors :

ONE

Mounting Type :

Through Hole, Right Angle

Packaging :

Bulk

UL Flammability Code :

94V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Male Pin

Shrouding :

Shrouded - 4 Wall

Mixed Contacts :

No

Option :

GENERAL PURPOSE

IEC Conformance :

yes

Color :

Grey

Termination :

Solder

Orientation :

RIGHT ANGLE

Style :

Board to Cable/Wire

Contact Finish - Post :

Tin

Series :

SEK

Contact Length - Post :

0.114 2.90mm

Factory Lead Time :

10 Weeks

Reference Standard :

UL

Number of Positions Loaded :

All

Number of Rows :

2

Gender :

Male

Filter Feature :

No

Number of Positions :

10

Connector Type :

Header
