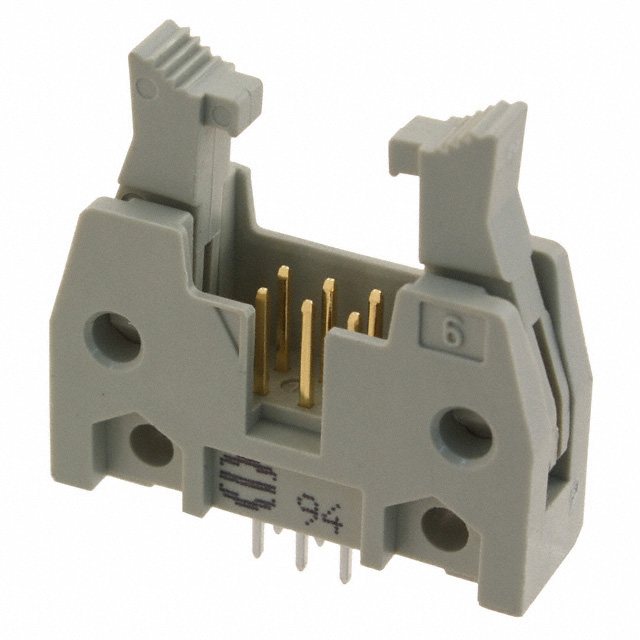

09185067902

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Number of Positions :

6

Series :

SEK

DIN Conformance :

yes

Body Length or Diameter :

1.587 inch

Option :

GENERAL PURPOSE

Color :

Grey

UL Flammability Code :

94V-0

Factory Lead Time :

7 Weeks

Row Spacing - Mating :

0.100 (2.54mm)

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Color :

Gray

IEC Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Body Breadth :

0.331 inch

Fastening Type :

Latch Lock/Eject Hooks, Long

Rated Current (Signal) :

1A

Mating Contact Pitch :

0.1 inch

Contact Length - Mating :

0.240 6.10mm

Dielectric Withstanding Voltage :

1000VAC V

Polarization Key :

CTR W/GUIDE SLOTS

Contact Material :

COPPER ALLOY

Operating Temperature :

-55°C~125°C

Pbfree Code :

yes

Contact Shape :

Square

Contact Finish - Mating :

NOT SPECIFIED

Reliability :

COMMERCIAL

Feature :

Keying Slot, Mounting Flange

Contact Length - Post :

0.177 4.50mm

Number of Rows :

2

Contact Finish - Post :

Tin

Insulation Resistance :

1000000000Ohm

Contact Type :

Male Pin

Packaging :

Bulk

MIL Conformance :

No

Number Of PCB Rows :

2

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mounting Type :

Through Hole

Material Flammability Rating :

UL94 V-0

Connector Type :

Header

Number of Conductors :

ONE

Overall Contact Length :

0.713 18.10mm

Mount :

Through Hole

Pitch - Mating :

0.100 2.54mm

Length - Termination :

0.177 inch

RoHS Status :

ROHS3 Compliant

Mixed Contacts :

No

Durability :

50 Cycles

Shrouding :

Shrouded - 4 Wall

Reference Standard :

UL

Insulation Height :

0.681 17.30mm

ECCN Code :

EAR99

Style :

Board to Cable/Wire

Termination :

Solder

Number of Positions Loaded :

All
