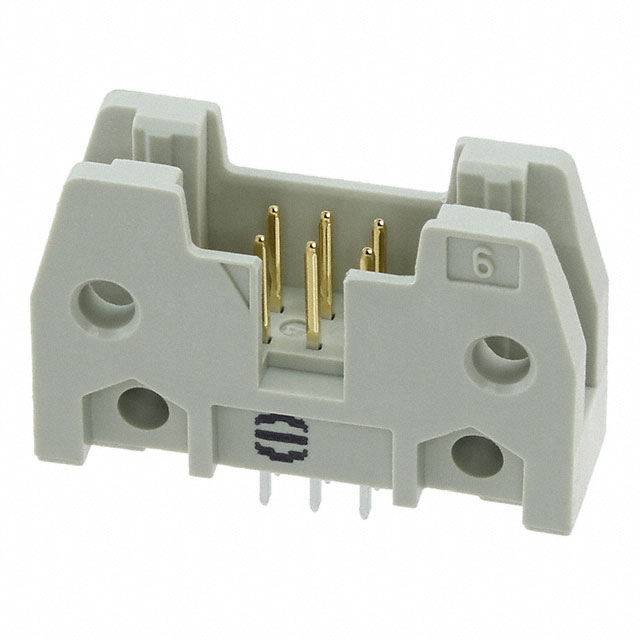

09185066924

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Reliability :

COMMERCIAL

Mounting Type :

Through Hole

MIL Conformance :

No

Termination :

Solder

Body Breadth :

0.335 inch

Orientation :

Straight

Contact Material :

COPPER ALLOY

Current Rating :

2A

Number of Positions :

6

Operating Temperature :

-55°C~125°C

Mixed Contacts :

No

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

2

Row Spacing - Mating :

0.100 (2.54mm)

Body Length or Diameter :

1.071 inch

Mount :

Through Hole

Series :

SEK

Housing Material :

Polyester

DIN Conformance :

yes

Pitch - Mating :

0.100 2.54mm

Pbfree Code :

yes

Contact Type :

Male Pin

Packaging :

Bulk

Material Flammability Rating :

UL94 V-0

Overall Contact Length :

0.650 16.51mm

Contact Gender :

Male

Factory Lead Time :

7 Weeks

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Filter Feature :

No

Feature :

Keying Slot, Mounting Flange

Fastening Type :

Push-Pull

Insulation Color :

Gray

Mating Contact Pitch :

0.1 inch

Option :

GENERAL PURPOSE

Contact Shape :

Square

Insulation Height :

0.681 17.30mm

Length - Termination :

0.114 inch

Contact Finish - Mating :

NOT SPECIFIED

Style :

Board to Cable/Wire

Contact Length - Mating :

0.240 6.10mm

IEC Conformance :

No

UL Flammability Code :

94V-0

Color :

Grey

RoHS Status :

ROHS3 Compliant

Reference Standard :

UL

Number of Rows :

2

Shrouding :

Shrouded - 4 Wall

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Rated Current (Signal) :

2A

Contact Length - Post :

0.114 2.90mm

Contact Finish - Post :

Tin

Number of Conductors :

ONE

ECCN Code :

EAR99

Polarization Key :

POLARIZED HOUSING

Connector Type :

Header

Insulation Resistance :

1000000000Ohm

Number of Positions Loaded :

All
