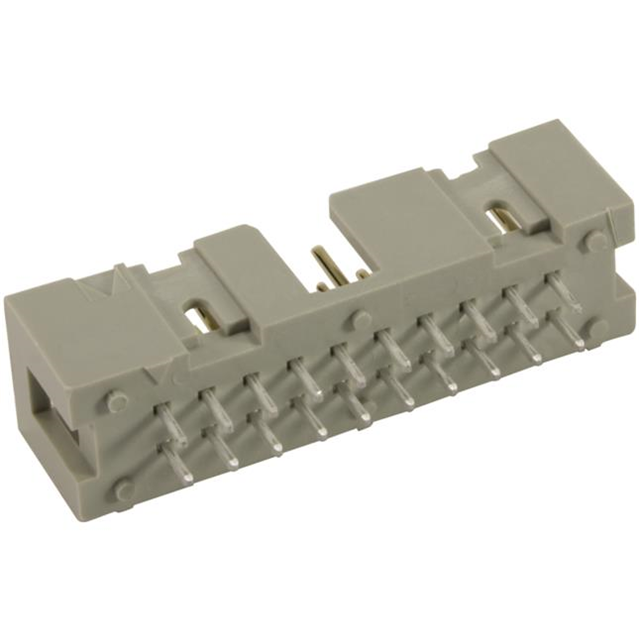

09185066322

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Factory Lead Time :

7 Weeks

Series :

SEK

Insulation Height :

0.350 8.89mm

Insulation Resistance :

1000000000Ohm

RoHS Status :

ROHS3 Compliant

DIN Conformance :

yes

Number Of PCB Rows :

2

MIL Conformance :

No

Filter Feature :

No

Mount :

Through Hole

Number of Positions Loaded :

All

Option :

GENERAL PURPOSE

Connector Type :

Header

Fastening Type :

Latch Holder

Insulation Color :

Gray

Mixed Contacts :

No

Contact Shape :

Square

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Operating Temperature :

-55°C~125°C

Number of Positions :

6

Color :

Grey

Contact Material :

COPPER ALLOY

Polarization Key :

POLARIZED HOUSING

Mating Contact Pitch :

0.1 inch

Packaging :

Bulk

Style :

Board to Cable/Wire

Length - Termination :

0.177 inch

Contact Length - Mating :

0.240 6.10mm

Pitch - Mating :

0.100 2.54mm

Row Spacing - Mating :

0.100 (2.54mm)

Number of Conductors :

ONE

Rated Current (Signal) :

2A

Reference Standard :

UL

Contact Type :

Male Pin

Material Flammability Rating :

UL94 V-0

Contact Length - Post :

0.177 4.50mm

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Post :

Tin

Number of Rows :

2

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Feature :

Keying Slot

Shrouding :

Shrouded - 4 Wall

Termination :

Solder

Contact Finish - Mating :

NOT SPECIFIED

Pbfree Code :

yes

IEC Conformance :

yes

UL Flammability Code :

94V-0
