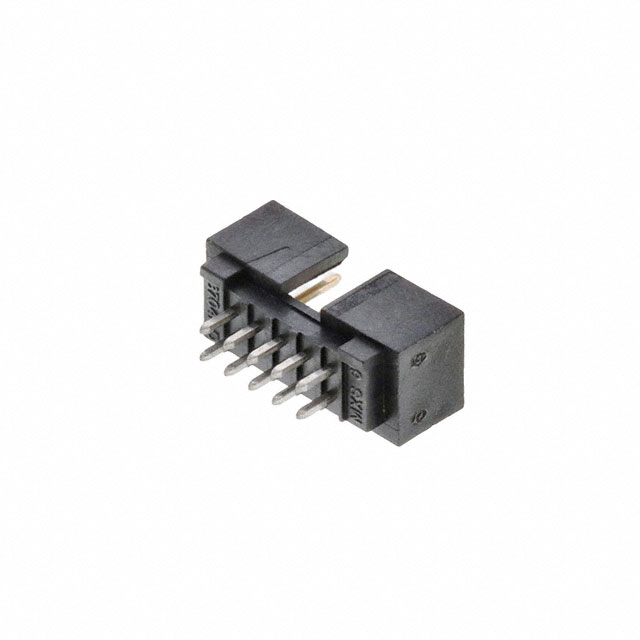

0918160010
Or copy the link below:
- Mfr.Part #
- 0918160010
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 2.54MM
- Stock
- 73
- In Stock ：
- 73
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Through Hole
- Mixed Contacts :
- No
- Packaging :
- Tray
- Fastening Type :
- Push-Pull
- Additional Feature :
- POLARIZED
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Length - Mating :
- 0.240 6.10mm
- Feature :
- Keying Slot
- Contact Material :
- Brass
- Contact Length - Post :
- 0.129 3.28mm
- Applications :
- Automotive, General Purpose, Lighting, Medical, Telecommunications
- DIN Conformance :
- No
- Filter Feature :
- No
- IEC Conformance :
- No
- Style :
- Board to Board
- Pitch - Mating :
- 0.100 2.54mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 10
- RoHS Status :
- ROHS3 Compliant
- Series :
- C-Grid 91816
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Connector Type :
- Header
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- Contact Finish - Post :
- Tin
- Factory Lead Time :
- 10 Weeks
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 74.8μin 1.90μm
- Insulation Height :
- 0.365 9.27mm
- Pbfree Code :
- yes
- MIL Conformance :
- No
- Termination :
- Solder
- Insulation Material :
- Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
- Shrouding :
- Shrouded - 4 Wall
- Contact Type :
- Male Pin
- Overall Contact Length :
- 0.494 12.54mm
- Contact Finish - Mating :
- Gold
- Number of Rows :
- 2
- Datasheets
- 0918160010
C-Grid 91816 Series 2-Row Header Solder Brass Tray Through Hole Gold Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled 10-Position Board to Board 0.365 9.27mm Height
0918160010 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the C-Grid 91816 Series.Among other features are POLARIZED, to name only a few.The device may be used for the following applications: Automotive, General Purpose, Lighting, Medical, Telecommunications.It is more powerful in many ways due to its Keying Slot feature.
0918160010 Features
C-Grid 91816 series
0918160010 Applications
There are a lot of Molex
0918160010 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
