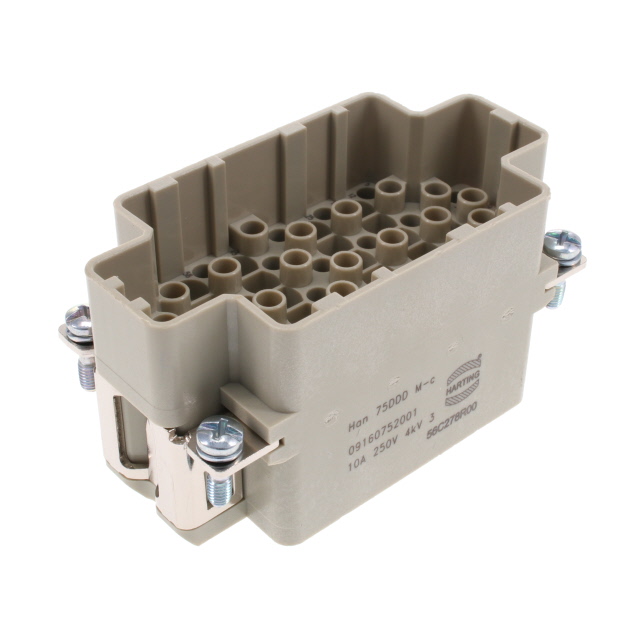

09160752001

Manufacturer :

HARTING

Product Category :

Heavy Duty Connector Inserts, Modules

Product Height (mm) :

34(mm)

Product Depth (mm) :

34.5(mm)

Contact Finish :

-

Operating Temperature :

-40°C ~ 125°C

Mounting Style :

Panel Mount

Minimum Operating Temperature :

- 40 C

Max. temperature :

+125°C

For Use With :

Size 10B Housings

Contact Material :

-

Current Rating (Amps) :

10A

Body Orientation :

Straight

Product Status :

Active

Flammability Rating :

UL 94V-0

Termination Style :

Crimp

Size :

10b

RoHS :

Details

IP Rating :

-

Content :

1pc(s)

Thread Size :

-

Contact Plating :

-

Contact Type :

Han® D

Maximum Operating Temperature :

+ 125 C

Package :

Bulk

Base Product Number :

09160752

Color :

Gray

Connector Type :

Insert without Contacts

Product Length (mm) :

64(mm)

Voltage Rating :

250 V

Contact Gender :

Pin (Male)

Material Flammability Rating :

UL94 V-0

Total Number of Contacts :

75(POS)

Current Rating (Max) :

10(A)

Current Rating :

10 A

Mounting Angle :

Staright

Gender :

PL

Operating Temp Range :

-40C to 125C

Voltage Rating Max :

250V

Min. temperature :

-40°C

Type :

RECTANGULAR

Housing Material :

Polycarbonate (PC)

Housing Color :

Gray

Number of Positions :

75 Position + PE

Product :

Inserts

Connection :

Crimp

Tradename :

Han

Accessory Type :

-

Series :

Han DDD
