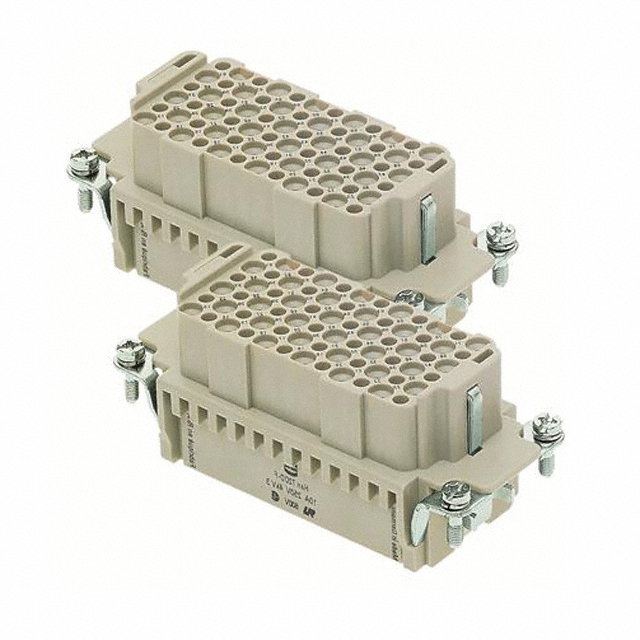

09160723101

Manufacturer :

HARTING

Product Category :

Heavy Duty Connector Inserts, Modules

Contact Plating :

Silver

Termination Style :

Crimp

Number of Pins :

72

Wire Gauge (Min) :

26 AWG

Contact Resistance :

3mOhm

Ratings :

IP65

Voltage - Rated AC :

250V

Depth :

36.1mm

Reliability :

COMMERCIAL

Durability :

500 Cycles

Working Voltage :

250V

Contact Material :

NOT SPECIFIED

Number of Positions :

72+Ground

Series :

Han® DD

Flammability Rating :

UL94 V-0

Mixed Contacts :

yes

Reference Standard :

UL, CSA

DIN Conformance :

No

Factory Lead Time :

4 Weeks

Dielectric Withstanding Voltage :

4000VAC V

IEC Conformance :

No

Pbfree Code :

yes

Mounting Option 1 :

M3

Lead Free :

Lead Free

Wire Gauge (Max) :

14 AWG

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Number of Conductors :

ONE

Test Voltage :

2kV

Length :

84.5mm

Mounting Option 2 :

LOCKING

Material Flammability Rating :

UL94 V-0

Number of Rows :

6

Size :

16b

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

RoHS Compliant

Gender :

FEMALE

Orientation :

Straight

Body/Shell Style :

PLUG

Body Breadth :

1.339 inch

Max Current Rating :

10A

Housing Material :

Polycarbonate (PC)

MIL Conformance :

No

Contact Type :

Han® D

Connector Type :

Insert without Contacts

Contact Finish - Mating :

NOT SPECIFIED

Test Current :

10A

Operating Temperature :

-40°C~125°C

REACH SVHC :

No SVHC

Voltage - Rated DC :

250V

Current Rating :

10A

Color :

Gray

Mounting Type :

CABLE

Insulation Resistance :

10GOhm

Total Number of Contacts :

72
