09152192603
Or copy the link below:
- Mfr.Part #
- 09152192603
- Manufacturer
- HARTING
- Package / Case
- Metal
- Datasheet
- Download
- Description

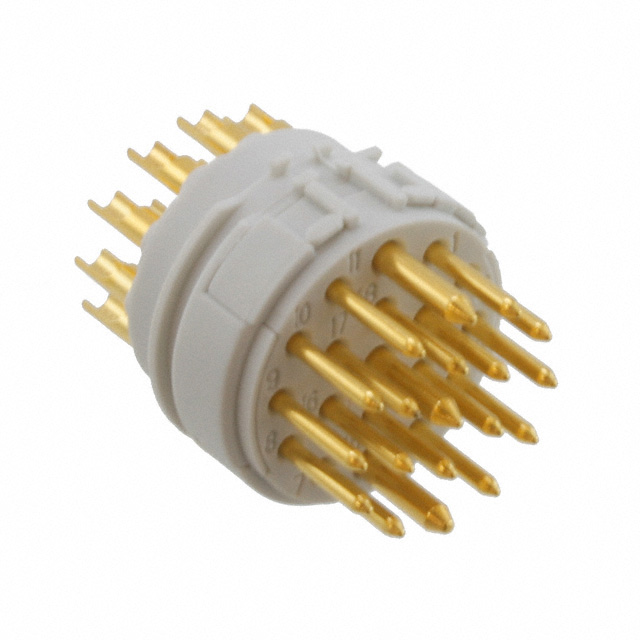

- CONN MALE INSERT 19P SOLDER CUP
- Stock
- 35,797
- In Stock ：
- 35,797
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Circular Connector Assemblies
- Orientation :
- Straight
- Environmental Characteristics :
- CORROSION RESISTANT
- Option :
- GENERAL PURPOSE
- Current Rating (Amps) :
- 7A 10A
- Pbfree Code :
- yes
- MIL Conformance :
- No
- Backshell Type :
- Solid
- Series :
- Han® R23
- Package / Case :
- Metal
- Packaging :
- Bulk
- IEC Conformance :
- No
- Insert Material :
- Polybutylene Terephthalate (PBT)
- Connector Type :
- Insert, Male Pins
- Termination :
- Solder Cup
- Feature :
- Insert Only, Requires Shell
- Mounting Type :
- BOARD
- DIN Conformance :
- No
- JESD-609 Code :
- e4
- Operating Temperature :
- -40°C~115°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Gold
- Filter Feature :
- No
- Empty Shell :
- No
- Shell Finish :
- Nickel
- Contact Material :
- COPPER ALLOY
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Mixed Contacts :
- yes
- Number of Positions :
- 19
- Shell Material :
- COPPER-ZINC ALLOY
- Total Number of Contacts :
- 19
- Shielding :
- Unshielded
- Current Rating :
- 10A
- Coupling Type :
- Bayonet
- Shell Size :
- 23
- Voltage - Rated :
- 50V
- RoHS Status :
- RoHS Compliant
- Datasheets
- 09152192603
09152192603 Documents
Insert, Male Pins COPPER-ZINC ALLOY BOARD 19 Positions Solder Cup Gold NICKEL Bulk Straight
09152192603 Overview
It comes in Insert, Male Pins packaging.The device's mounting type is BOARD.In order to package the product, a Bulk case is used.It belongs to the Han® R23 Series of products.In the packaging with the Metal, there is a device enclosed in the package.Its Insert Only, Requires Shell feature renders it more powerful in many ways.The device runs in -40°C~115°C Operating Temperature.
09152192603 Features
Han® R23 series
09152192603 Applications
There are a lot of HARTING
09152192603 Circular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
