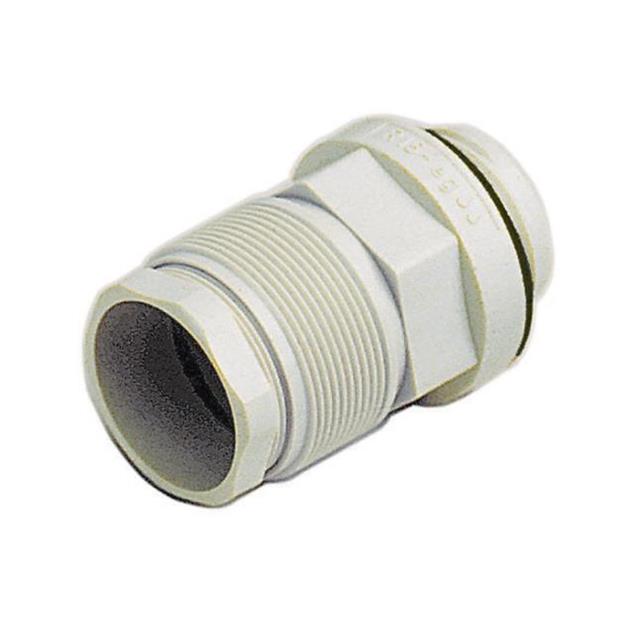

09150000101
Or copy the link below:
- Mfr.Part #
- 09150000101
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN INSERT SHELL INLINE
- Stock
- 15,396
- In Stock ：
- 15,396
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Circular Connector Housings
- Shielding :
- Unshielded
- Contact Plating :
- Silver
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Gender :
- FEMALE
- Operating Temperature :
- -40°C~125°C
- Ratings :
- Dust Tight, IP65, Water Resistant
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Housing Material :
- Polycarbonate
- Voltage - Rated DC :
- 300V
- Termination :
- Screw
- Mounting Type :
- Free Hanging (In-Line)
- Connector Type :
- Insert Shell
- RoHS Status :
- ROHS3 Compliant
- Current Rating :
- 10A
- Contact Material :
- Copper
- Note :
- Contacts Not Included; Insert Not Included
- Body Material :
- Resin, Thermoplastic
- Packaging :
- Bulk
- Series :
- R 15
- Contact Resistance :
- 3mOhm
- Orientation :
- Straight
- Shell Material :
- Thermoplastic
- Mount :
- Free Hanging, Panel
- Housing Color :
- Gray
- Voltage - Rated AC :
- 250V
- Fastening Type :
- Threaded
- REACH SVHC :
- No SVHC
- Factory Lead Time :
- 4 Weeks
- Material Flammability Rating :
- UL94 V-0
- Insulation Resistance :
- 10GOhm
- Contact Finish - Mating :
- NOT SPECIFIED
- Datasheets
- 09150000101
09150000101 Documents
Insert Shell Thermoplastic Free Hanging (In-Line) Bulk Threaded Unshielded Contacts Not Included; Insert Not Included R 15
09150000101 Overview
A Insert Shell package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the R 15 Series of products.If you wish to mount this part, you will need to use a Free Hanging, Panel socket.
09150000101 Features
R 15 series
09150000101 Applications
There are a lot of HARTING
09150000101 Circular Connectors applications.
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
