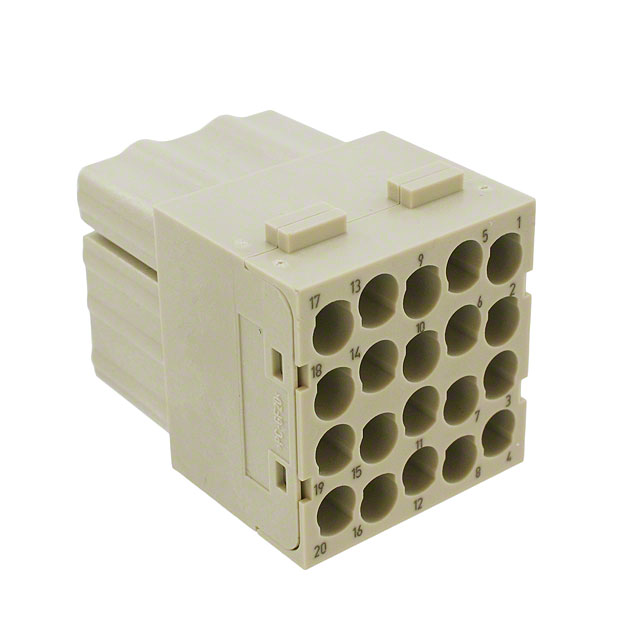

09140203101
Or copy the link below:
- Mfr.Part #
- 09140203101
- Manufacturer
- HARTING
- Package / Case
- Module
- Datasheet
- Download
- Description
- MODULE FEMALE 20POS CRIMP
- Stock
- 677
- In Stock ：
- 677
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Option :
- GENERAL PURPOSE
- ECCN Code :
- EAR99
- Max Current Rating :
- 16A
- Depth :
- 39.8mm
- Packaging :
- Bulk
- Contact Type :
- Han®
- Orientation :
- Straight
- Contact Resistance :
- 1MOhm
- RoHS Status :
- ROHS3 Compliant
- Color :
- Gray
- Number of Positions :
- 20
- Number of Pins :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 16A
- Package / Case :
- Module
- Series :
- Han® EEE
- Working Voltage :
- 500V
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Copper
- IEC Conformance :
- No
- Gender :
- FEMALE
- MIL Conformance :
- No
- Operating Temperature :
- -40°C~125°C
- Connector Type :
- Module without Contacts
- Material :
- Polycarbonate
- Factory Lead Time :
- 5 Weeks
- Housing Material :
- Polycarbonate (PC)
- DIN Conformance :
- No
- Contact Finish - Mating :
- NOT SPECIFIED
- Length :
- 29.2mm
- Insulation Resistance :
- 10MOhm
- Voltage - Rated AC :
- 500V
- Termination Style :
- Crimp
- Number of Rows :
- 5
- Voltage - Rated DC :
- 500V
- REACH SVHC :
- No SVHC
- Datasheets
- 09140203101
