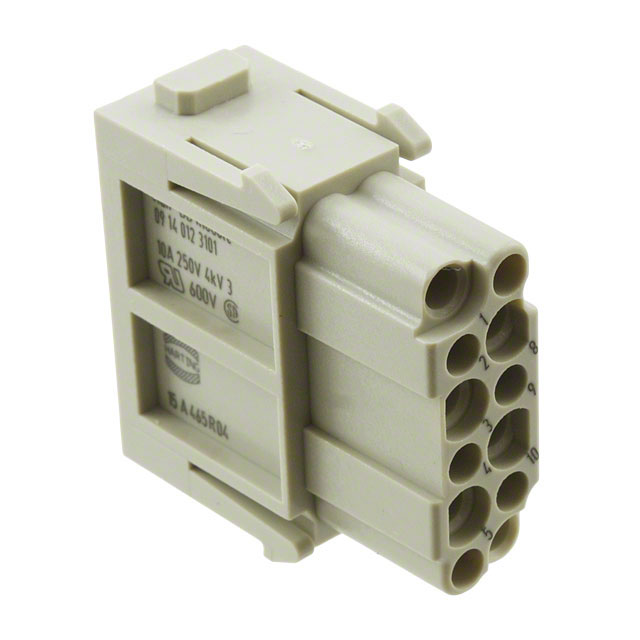

09140123101
Or copy the link below:
- Mfr.Part #
- 09140123101
- Manufacturer
- HARTING
- Package / Case
- Module
- Datasheet
- Download
- Description
- MODULE FEMALE 12POS CRIMP
- Stock
- 21
- In Stock ：
- 21
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Pbfree Code :
- yes
- Body/Shell Style :
- PLUG
- Body Breadth :
- 0.575 inch
- Wire Gauge (Min) :
- 26 AWG
- REACH SVHC :
- No SVHC
- Flammability Rating :
- UL94 V-0
- Test Current :
- 10A
- Length :
- 34.2mm
- Voltage - Rated DC :
- 250V
- Orientation :
- Straight
- Working Voltage :
- 250V
- Insulation Material :
- Polycarbonate
- MIL Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Gender :
- FEMALE
- Mounting Type :
- CABLE
- Series :
- Han® DD
- Color :
- Gray
- Termination Style :
- Crimp
- Contact Finish - Mating :
- NOT SPECIFIED
- Total Number of Contacts :
- 12
- Housing Material :
- Polycarbonate (PC)
- Reference Standard :
- UL, CSA
- Depth :
- 34mm
- Operating Temperature :
- -40°C~125°C
- HTS Code :
- 8536.69.80.00
- Max Current Rating :
- 10A
- Number of Positions :
- 12
- Contact Type :
- Han® D
- Option :
- GENERAL PURPOSE
- Reliability :
- COMMERCIAL
- Contact Material :
- Gold
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 2
- Number of Conductors :
- ONE
- Connector Type :
- Module without Contacts
- Current Rating :
- 10A
- Wire Gauge (Max) :
- 14 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Additional Feature :
- RoHS Compliant
- Voltage - Rated AC :
- 250V
- Mixed Contacts :
- yes
- Packaging :
- Bulk
- Package / Case :
- Module
- Contact Resistance :
- 3mOhm
- IEC Conformance :
- No
- Factory Lead Time :
- 4 Weeks
- ECCN Code :
- EAR99
- DIN Conformance :
- No
- Insulation Resistance :
- 10000000000Ohm
- Durability :
- 500 Cycles
- Datasheets
- 09140123101
