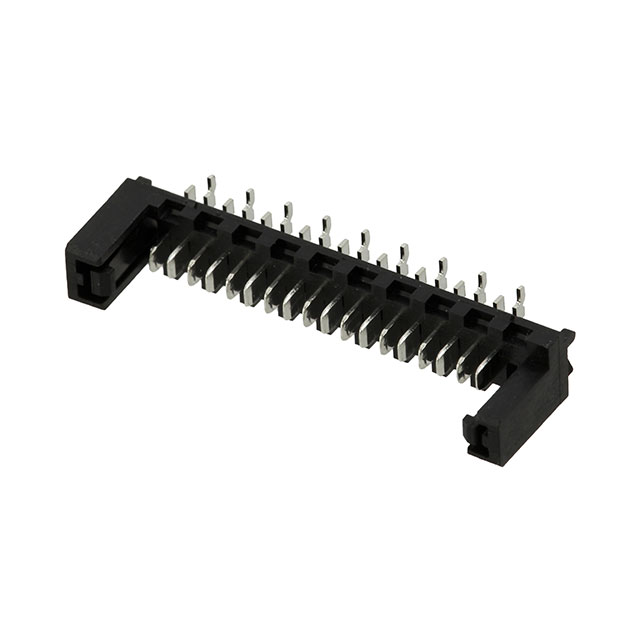

0908160218
Or copy the link below:
- Mfr.Part #
- 0908160218
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 18POS 1.27MM
- Stock
- 1,800
- In Stock ：
- 1,800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Orientation :
- Vertical
- Contact Length - Mating :
- 0.083 2.10mm
- Contact Material :
- Brass
- Series :
- Picoflex 90816
- Factory Lead Time :
- 30 Weeks
- Packaging :
- Tape and Reel (TR)
- Housing Color :
- Black
- Operating Temperature :
- -40°C~105°C
- Number of Positions :
- 18
- Housing Material :
- Nylon
- Termination :
- Solder
- DIN Conformance :
- No
- Insulation Height :
- 0.333 8.45mm
- Contact Finish - Mating :
- Tin
- Pitch - Mating :
- 0.050 1.27mm
- Shrouding :
- Shrouded - 2 Wall
- Filter Feature :
- No
- Material Flammability Rating :
- UL94 HB
- Style :
- Board to Cable/Wire
- Additional Feature :
- POLARIZED
- IEC Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- Contact Type :
- Male Blade
- Feature :
- Board Guide
- Length :
- 28.64mm
- Mounting Type :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- MIL Conformance :
- No
- Pbfree Code :
- yes
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Insulation Material :
- Polyphthalamide (PPA), Glass Filled
- Connector Type :
- Header
- Number of Circuits :
- 16
- Mount :
- Surface Mount
- Fastening Type :
- Latch Lock
- Contact Shape :
- RECTANGULAR
- Number of Positions Loaded :
- All
- Current Rating :
- 1.2A
- Total Number of Contacts :
- 18
- Mixed Contacts :
- No
- Voltage - Rated :
- 250V
- Datasheets
- 0908160218
0908160218 Documents
Picoflex 90816 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyphthalamide (PPA), Glass Filled 18-Position Board to Cable/Wire 0.333 8.45mm Height
0908160218 Overview
It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the Picoflex 90816 Series of products.In addition, there are other features such as POLARIZED, to mention only a few.Automotive, General Purpose, Industrial, Medical is a possible application for the device.Its Board Guide feature renders it more powerful in many ways.The part is mounted by Surface Mount.The part consists of 16 circuits.The device runs in -40°C~105°C Operating Temperature.
0908160218 Features
Picoflex 90816 series
0908160218 Applications
There are a lot of Molex
0908160218 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
