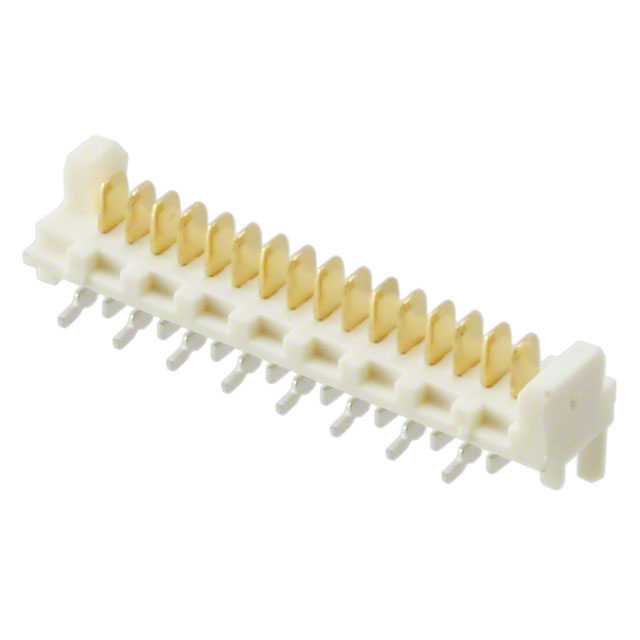

0908143916

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mounting Type :

Surface Mount

MIL Conformance :

No

Mating Contact Pitch :

0.05 inch

Style :

Board to Cable/Wire

Pbfree Code :

yes

Polarization Key :

POLARIZING PEG

Number of Positions :

16

Contact Type :

Male Blade

Body Depth :

0.203 inch

RoHS Status :

ROHS3 Compliant

Shrouding :

Shrouded - 2 Wall

Applications :

Automotive, General Purpose, Industrial, Medical

Reference Standard :

UL

Plating Thickness :

24μin

Number of Positions Loaded :

All

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Number of Rows :

1

Filter Feature :

No

Dielectric Withstanding Voltage :

750VAC V

PCB Contact Pattern :

STAGGERED

Factory Lead Time :

30 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

16

Contact Finish - Mating :

Palladium-Nickel

Reliability :

COMMERCIAL

UL Flammability Code :

94V-0

Pitch - Mating :

0.050 1.27mm

Fastening Type :

Push-Pull

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

Contact Material :

Cartridge Brass

Contact Finish Thickness - Mating :

24.0μin 0.61μm

Feature :

Board Guide

Current Rating (Amps) :

1.2A

Operating Temperature (Min) :

-40°C

Number of Conductors :

ONE

Additional Feature :

POLARIZED

Packaging :

Tape and Reel (TR)

Number Of PCB Rows :

2

Voltage - Rated :

250V

Termination :

Solder

Contact Length - Mating :

0.085 2.15mm

Board Mounting Option :

PEG

IEC Conformance :

No

Withdrawl Force-Min :

.2502 N

Body Length or Diameter :

0.949 inch

Insulation Color :

Natural

Contact Finish Thickness - Post :

118.1μin 3.00μm

Connector Type :

Header

Insulation Height :

0.161 4.10mm

DIN Conformance :

No

Mounting Option 1 :

LOCKING

Contact Finish - Post :

Tin

Contact Shape :

RECTANGULAR

Series :

Picoflex PF-50 90814
