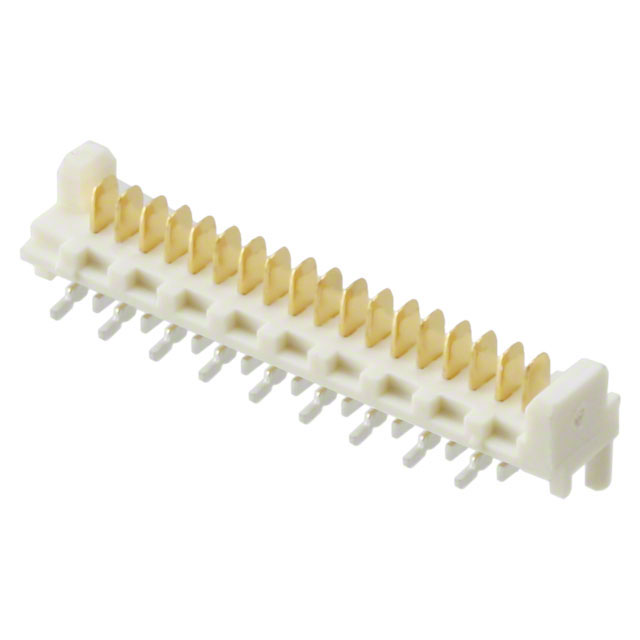

0908143818
Or copy the link below:
- Mfr.Part #
- 0908143818
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 18POS 1.27MM
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Feature :
- Board Guide
- Number of Conductors :
- ONE
- Mounting Option 1 :
- LOCKING
- Contact Type :
- Male Blade
- Plating Thickness :
- 24μin
- UL Flammability Code :
- 94V-0
- DIN Conformance :
- No
- Series :
- Picoflex PF-50 90814
- Factory Lead Time :
- 31 Weeks
- Dielectric Withstanding Voltage :
- 750VAC V
- Total Number of Contacts :
- 18
- Contact Finish - Mating :
- Palladium-Nickel
- Contact Shape :
- RECTANGULAR
- Number of Rows :
- 1
- IEC Conformance :
- No
- Style :
- Board to Cable/Wire
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Insulation Color :
- Natural
- Mating Contact Pitch :
- 0.05 inch
- Number of Positions :
- 18
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Mating :
- 24.0μin 0.61μm
- Number Of PCB Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- MIL Conformance :
- No
- Body Depth :
- 0.203 inch
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- PCB Contact Pattern :
- STAGGERED
- Pitch - Mating :
- 0.050 1.27mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 2 Wall
- Fastening Type :
- Push-Pull
- Withdrawl Force-Min :
- .2502 N
- Mixed Contacts :
- No
- Reference Standard :
- UL
- Contact Material :
- Cartridge Brass
- Polarization Key :
- POLARIZING PEG
- Insulation Height :
- 0.161 4.10mm
- Termination :
- Solder
- Connector Type :
- Header
- Operating Temperature (Min) :
- -40°C
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Mounting Type :
- Surface Mount
- Reliability :
- COMMERCIAL
- Contact Length - Mating :
- 0.085 2.15mm
- Additional Feature :
- LOW PROFILE, POLARIZED
- Board Mounting Option :
- PEG
- Packaging :
- Tube
- Rated Current (Signal) :
- 2.4A
- RoHS Status :
- ROHS3 Compliant
- Filter Feature :
- No
- Datasheets
- 0908143818
Picoflex PF-50 90814 Series 1-Row Header Solder Cartridge Brass Tube Surface Mount Palladium-Nickel Polyamide (PA), Nylon, Glass Filled 18-Position Board to Cable/Wire 0.161 4.10mm Height
0908143818 Overview
The product comes in a package of Header.Surface Mount is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Picoflex PF-50 90814 Series.Among other features are LOW PROFILE, POLARIZED, to name only a few.The device may be used for the following applications: Automotive, General Purpose, Industrial, Medical.It is more powerful in many ways due to its Board Guide feature.
0908143818 Features
Picoflex PF-50 90814 series
0908143818 Applications
There are a lot of Molex
0908143818 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
