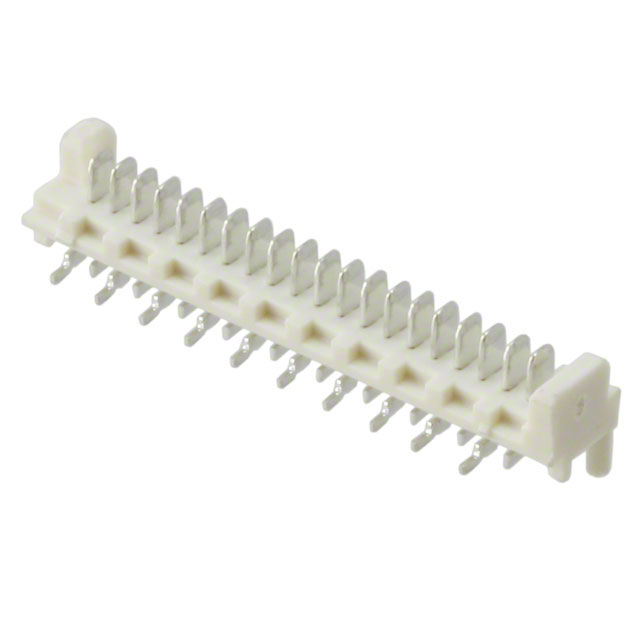

0908140920
Or copy the link below:
- Mfr.Part #
- 0908140920
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 20POS 1.27MM
- Stock
- 7,261
- In Stock ：
- 7,261
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Durability :
- 30 Cycles
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Natural
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Number of Positions :
- 20
- Board Mounting Option :
- PEG
- Terminal Pitch :
- 2.54mm
- Factory Lead Time :
- 30 Weeks
- Withdrawl Force-Min :
- .2502 N
- Connector Type :
- Header
- Mounting Option 1 :
- LOCKING
- Contact Material :
- Cartridge Brass
- Pitch - Mating :
- 0.050 1.27mm
- Dielectric Withstanding Voltage :
- 750VAC V
- Insulation Height :
- 0.161 4.10mm
- PCB Contact Pattern :
- STAGGERED
- RoHS Status :
- ROHS3 Compliant
- Current Rating (Amps) :
- 1.2A
- Termination :
- Solder
- JESD-609 Code :
- e3
- Packaging :
- Tape and Reel (TR)
- Feature :
- Board Guide
- Contact Type :
- Male Blade
- Fastening Type :
- Push-Pull
- Reference Standard :
- UL
- HTS Code :
- 8536.69.40.40
- Operating Temperature (Min) :
- -40°C
- Reliability :
- COMMERCIAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Conductors :
- ONE
- ECCN Code :
- EAR99
- Mounting Type :
- Surface Mount
- Contact Length - Mating :
- 0.085 2.15mm
- Voltage - Rated :
- 250V
- Contact Finish - Mating :
- Tin
- Number of Positions Loaded :
- All
- Number Of PCB Rows :
- 2
- Number of Rows :
- 1
- Mating Contact Pitch :
- 0.05 inch
- Total Number of Contacts :
- 20
- Shrouding :
- Shrouded - 2 Wall
- Contact Shape :
- RECTANGULAR
- Style :
- Board to Cable/Wire
- Series :
- Picoflex PF-50 90814
- Polarization Key :
- POLARIZING PEG
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Datasheets
- 0908140920
0908140920 Documents
Picoflex PF-50 90814 Series 1-Row Header Solder Cartridge Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon, Glass Filled 20-Position Board to Cable/Wire 0.161 4.10mm Height
0908140920 Overview
The product is packaged in Header.This device is mounted in the Surface Mount position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the Picoflex PF-50 90814 Series.The device could be used for the following application: Automotive, General Purpose, Industrial, Medical.There are a number of advantages to its Board Guide feature.
0908140920 Features
Picoflex PF-50 90814 series
0908140920 Applications
There are a lot of Molex
0908140920 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
