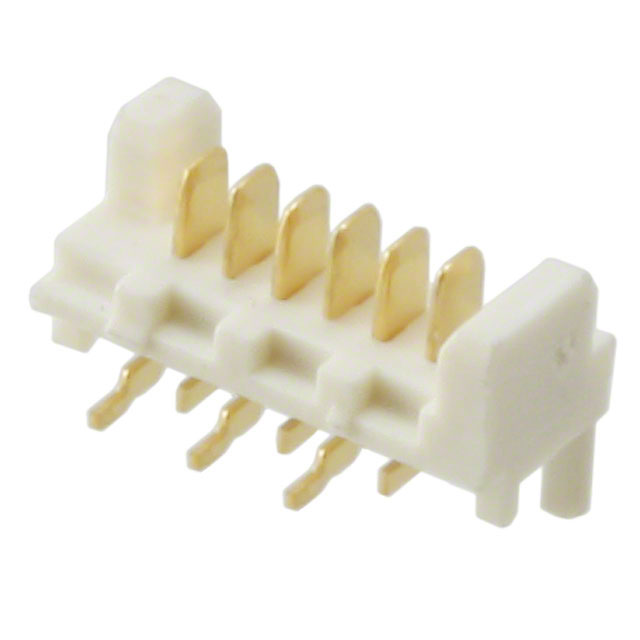

0908140706

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Insulation Height :

0.161 4.10mm

Dielectric Withstanding Voltage :

750VAC V

Number of Rows :

1

Reference Standard :

UL

RoHS Status :

ROHS3 Compliant

Contact Shape :

RECTANGULAR

Withdrawl Force-Min :

.2502 N

Contact Finish Thickness - Mating :

118.1μin 3.00μm

Contact Finish - Mating :

Tin

Voltage - Rated :

250V

Body Depth :

0.203 inch

Number of Positions :

6

Connector Type :

Header

Total Number of Contacts :

6

Contact Material :

Cartridge Brass

Operating Temperature (Min) :

-40°C

Terminal Pitch :

2.54mm

Fastening Type :

Push-Pull

Mounting Option 1 :

LOCKING

PCB Contact Pattern :

STAGGERED

Body Length or Diameter :

0.449 inch

Contact Length - Mating :

0.085 2.15mm

Mating Contact Pitch :

0.05 inch

Mounting Type :

Surface Mount

Insulation Color :

Natural

Style :

Board to Cable/Wire

Applications :

Automotive, General Purpose, Industrial, Medical

Termination :

Solder

Shrouding :

Shrouded - 2 Wall

Number Of PCB Rows :

2

Board Mounting Option :

PEG

Factory Lead Time :

30 Weeks

Series :

Picoflex PF-50 90814

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating (Amps) :

1.2A

Reliability :

COMMERCIAL

Packaging :

Cut Tape (CT)

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Number of Positions Loaded :

All

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

JESD-609 Code :

e3

Durability :

30 Cycles

Contact Type :

Male Blade

Pitch - Mating :

0.050 1.27mm

Polarization Key :

POLARIZING PEG
