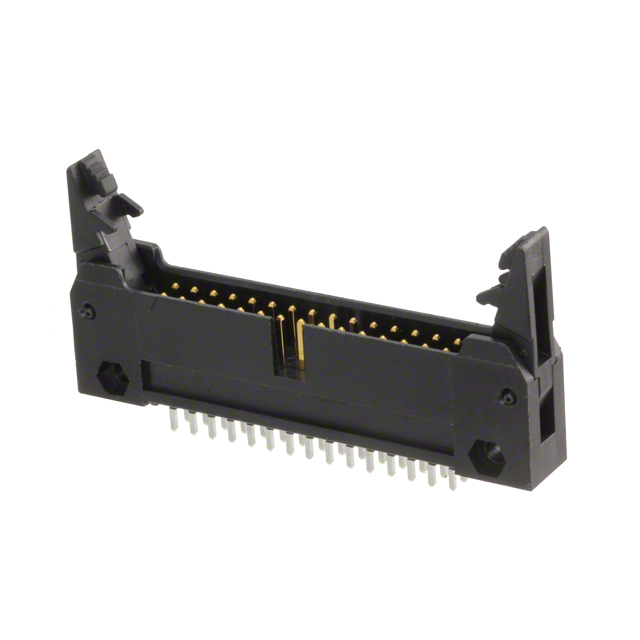

0906631302
Or copy the link below:
- Mfr.Part #
- 0906631302
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 30POS 2.54MM
- Stock
- 43,743
- In Stock ：
- 43,743
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Square
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Contact Length - Post :
- 0.138 3.50mm
- Number of Rows :
- 2
- Contact Finish - Post :
- Tin
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 0.642 16.30mm
- Connector Type :
- Header
- Insulation Material :
- Polyester, Glass Filled
- Contact Length - Mating :
- 0.200 5.08mm
- Fastening Type :
- Latch Lock/Eject Hooks
- Series :
- QF 50 90663
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Material Flammability Rating :
- UL94 V-0
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Type :
- Male Pin
- Style :
- Board to Cable/Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Insulation Color :
- Black
- Feature :
- Mounting Flange
- Packaging :
- Tray
- Contact Material :
- Brass
- Mounting Type :
- Through Hole
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- Number of Positions Loaded :
- All
- Number of Positions :
- 30
- Contact Finish - Mating :
- Gold
- Overall Contact Length :
- 0.657 16.70mm
- Datasheets
- 0906631302
QF 50 90663 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyester, Glass Filled 30-Position Board to Cable/Wire 0.642 16.30mm Height
0906631302 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the QF 50 90663 Series, it belongs to the range of products of that series.A number of features make the Mounting Flange feature more powerful.
0906631302 Features
QF 50 90663 series
0906631302 Applications
There are a lot of Molex
0906631302 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
