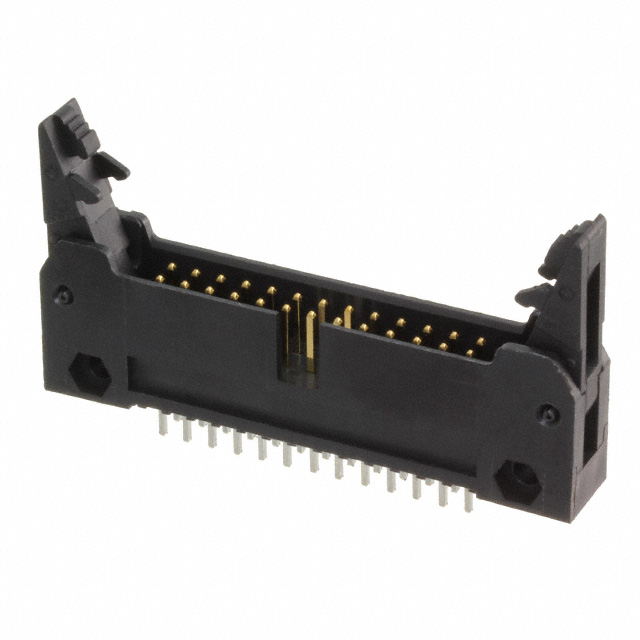

0906631262
Or copy the link below:
- Mfr.Part #
- 0906631262
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 26POS 2.54MM
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- IEC Conformance :
- No
- Packaging :
- Tray
- Contact Material :
- Brass
- Termination :
- Solder
- Mixed Contacts :
- No
- Insulation Color :
- Black
- Contact Length - Post :
- 0.138 3.50mm
- MIL Conformance :
- No
- Number of Positions :
- 26
- Row Spacing - Mating :
- 0.100 (2.54mm)
- UL Flammability Code :
- 94V-0
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 2
- Pbfree Code :
- yes
- Contact Type :
- Male Pin
- Fastening Type :
- Latch Lock/Eject Hooks
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Insulation Height :
- 0.642 16.30mm
- Style :
- Board to Cable/Wire
- Contact Length - Mating :
- 0.200 5.08mm
- Material Flammability Rating :
- UL94 V-0
- Series :
- QF 50 90663
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Overall Contact Length :
- 0.657 16.70mm
- Contact Finish - Mating :
- Gold
- Feature :
- Mounting Flange
- Mounting Type :
- Through Hole
- Pitch - Mating :
- 0.100 2.54mm
- Filter Feature :
- No
- Connector Type :
- Header
- DIN Conformance :
- No
- Insulation Material :
- Polyester, Glass Filled
- Contact Finish - Post :
- Tin
- Datasheets
- 0906631262
0906631262 Documents
QF 50 90663 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyester, Glass Filled 26-Position Board to Cable/Wire 0.642 16.30mm Height
0906631262 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the QF 50 90663 Series of products.A number of features make it more powerful because of its Mounting Flange feature.
0906631262 Features
QF 50 90663 series
0906631262 Applications
There are a lot of Molex
0906631262 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
