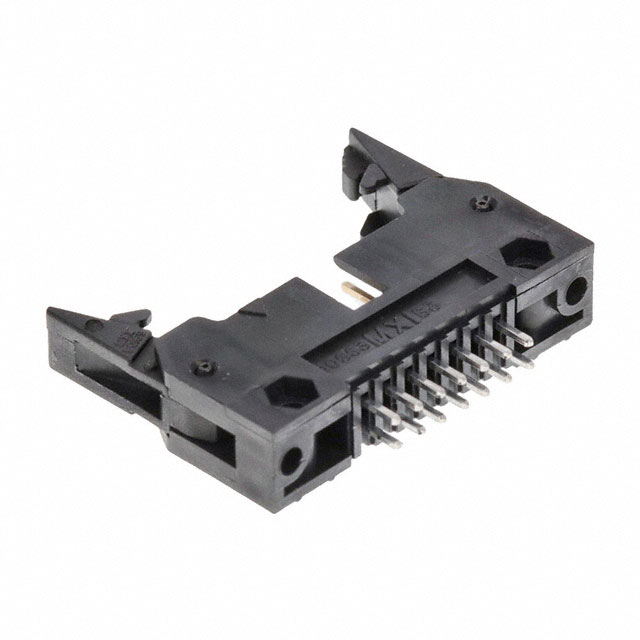

0906631141
Or copy the link below:
- Mfr.Part #
- 0906631141
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 2.54MM
- Stock
- 9,344
- In Stock ：
- 9,344
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Length - Mating :
- 0.200 5.08mm
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Mixed Contacts :
- No
- IEC Conformance :
- No
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Contact Length - Post :
- 0.138 3.50mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Latch Lock/Eject Hooks
- Insulation Height :
- 0.642 16.30mm
- DIN Conformance :
- No
- Style :
- Board to Cable/Wire
- Packaging :
- Tray
- Number of Positions :
- 14
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Series :
- QF 50 90663
- Overall Contact Length :
- 0.657 16.70mm
- Option :
- GENERAL PURPOSE
- Material Flammability Rating :
- UL94 V-0
- UL Flammability Code :
- 94V-0
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Contact Type :
- Male Pin
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Brass
- MIL Conformance :
- No
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish - Post :
- Tin
- Feature :
- Mounting Flange
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Insulation Color :
- Black
- Insulation Material :
- Polyester, Glass Filled
- Filter Feature :
- No
- Connector Type :
- Header
- Pbfree Code :
- yes
- Contact Shape :
- Square
- Contact Finish - Mating :
- Gold
- Datasheets
- 0906631141
0906631141 Documents
QF 50 90663 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyester, Glass Filled 14-Position Board to Cable/Wire 0.642 16.30mm Height
0906631141 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the QF 50 90663 Series.Several benefits come from the Mounting Flange feature.
0906631141 Features
QF 50 90663 series
0906631141 Applications
There are a lot of Molex
0906631141 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
