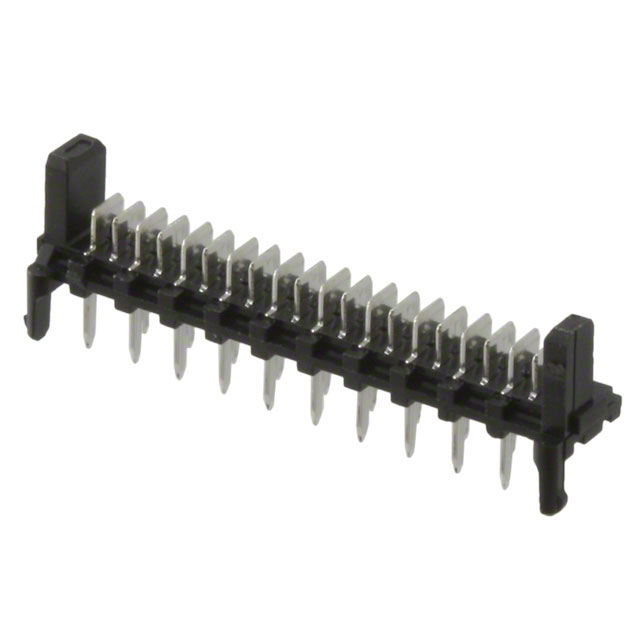

0903259020
Or copy the link below:
- Mfr.Part #
- 0903259020
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 1.27MM
- Stock
- 22,942
- In Stock ：
- 22,942
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Orientation :
- Straight
- Connector Type :
- Header
- Housing Color :
- Black
- Voltage - Rated :
- 250V
- Fastening Type :
- Push-Pull
- Housing Material :
- Plastic
- Shrouding :
- Shrouded - 2 Wall
- RoHS Status :
- ROHS3 Compliant
- Contact Length - Post :
- 0.130 3.30mm
- Series :
- Picoflex PF-50 90325
- Mount :
- Through Hole
- Lead Pitch :
- 1.27mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Number of Rows :
- 1
- Style :
- Board to Cable/Wire
- Contact Resistance :
- 15mOhm
- Gender :
- Male
- Contact Type :
- Male Blade
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Finish - Mating :
- Tin
- Operating Temperature :
- -40°C~105°C
- Number of Positions :
- 20
- Contact Material :
- Brass
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Contact Shape :
- RECTANGULAR
- Packaging :
- Tube
- Mounting Type :
- Through Hole
- Number of Positions Loaded :
- All
- Current Rating :
- 1.2A
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Pitch - Mating :
- 0.050 1.27mm
- Factory Lead Time :
- 9 Weeks
- Insulation Height :
- 0.252 6.40mm
- Feature :
- Board Lock
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Datasheets
- 0903259020
0903259020 Documents
Picoflex PF-50 90325 Series 1-Row Header Solder Brass Tube Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 20-Position Board to Cable/Wire 0.252 6.40mm Height
0903259020 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number Picoflex PF-50 90325 belongs to the Picoflex PF-50 90325 Series.In addition to Automotive, General Purpose, Industrial, Medical, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~105°C.
0903259020 Features
Picoflex PF-50 90325 series
0903259020 Applications
There are a lot of Molex
0903259020 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
