0903259012
Or copy the link below:
- Mfr.Part #
- 0903259012
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description

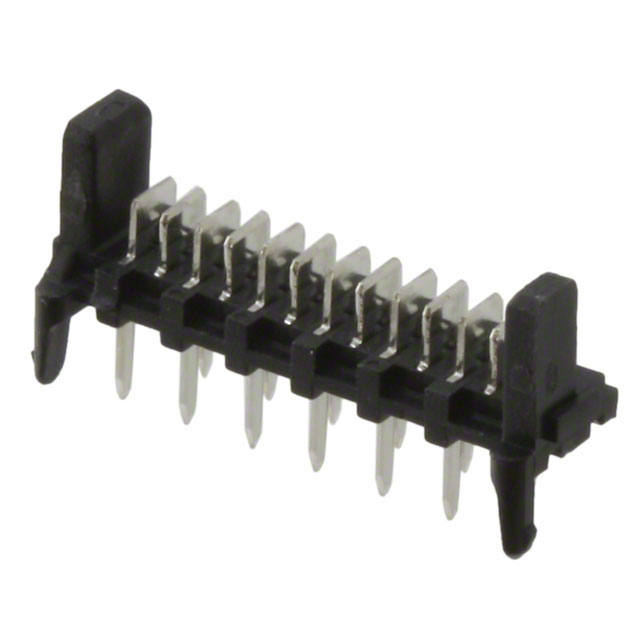

- CONN HEADER VERT 12POS 1.27MM
- Stock
- 72
- In Stock ：
- 72
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Current Rating (Amps) :
- 1.2A
- Insulation Color :
- Black
- RoHS Status :
- ROHS3 Compliant
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Shrouding :
- Shrouded - 2 Wall
- Voltage - Rated :
- 250V
- Insulation Height :
- 0.252 6.40mm
- Contact Material :
- Brass
- Fastening Type :
- Push-Pull
- Number of Rows :
- 1
- Series :
- Picoflex PF-50 90325
- Contact Finish - Mating :
- Tin
- Feature :
- Board Lock
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~105°C
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Contact Shape :
- RECTANGULAR
- Number of Positions :
- 12
- Pitch - Mating :
- 0.050 1.27mm
- Contact Length - Post :
- 0.130 3.30mm
- Factory Lead Time :
- 7 Weeks
- Packaging :
- Tube
- Termination :
- Solder
- Contact Type :
- Male Blade
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Style :
- Board to Cable/Wire
- Datasheets
- 0903259012
0903259012 Documents
Picoflex PF-50 90325 Series 1-Row Header Solder Brass Tube Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 12-Position Board to Cable/Wire 0.252 6.40mm Height
0903259012 Overview
You'll get Header packages.A Through Hole mounting type is specified for the device.A Tube case is used for packaging.The product belongs to the Picoflex PF-50 90325 Series.There's an application for it called Automotive, General Purpose, Industrial, Medical.A number of aspects of its Board Lock feature make it more powerful.In this case, the device runs at -40°C~105°C Operating Temperature.
0903259012 Features
Picoflex PF-50 90325 series
0903259012 Applications
There are a lot of Molex
0903259012 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
