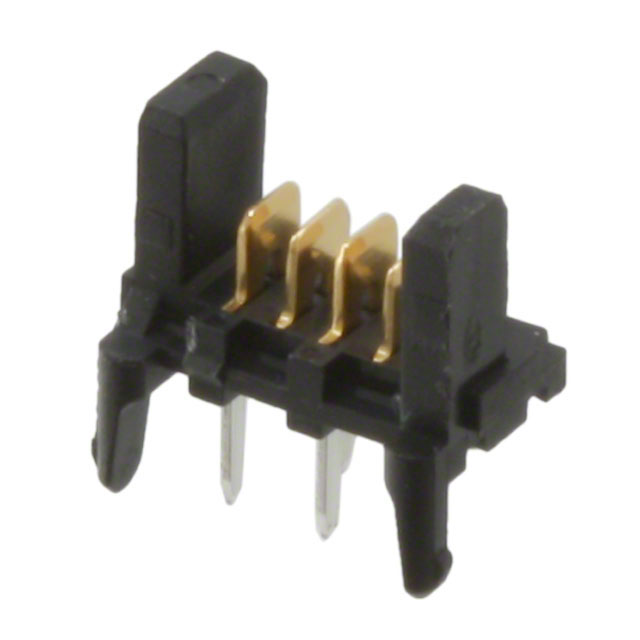

0903257004
Or copy the link below:
- Mfr.Part #
- 0903257004
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 1.27MM
- Stock
- 16
- In Stock ：
- 16
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Operating Temperature :
- -40°C~105°C
- Current Rating (Amps) :
- 1.2A
- Contact Material :
- Brass
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.130 3.30mm
- Mounting Type :
- Through Hole
- Pitch - Mating :
- 0.050 1.27mm
- Series :
- Picoflex PF-50 90325
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Fastening Type :
- Push-Pull
- Contact Finish - Mating :
- Palladium-Nickel
- Factory Lead Time :
- 31 Weeks
- Termination :
- Solder
- Voltage - Rated :
- 250V
- Number of Rows :
- 1
- Contact Type :
- Male Blade
- Insulation Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 2 Wall
- Contact Shape :
- RECTANGULAR
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.252 6.40mm
- Number of Positions Loaded :
- All
- Feature :
- Board Lock
- RoHS Status :
- ROHS3 Compliant
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Finish Thickness - Mating :
- 24.0μin 0.61μm
- Connector Type :
- Header
- Packaging :
- Tube
- Number of Positions :
- 4
- Datasheets
- 0903257004
0903257004 Documents
Picoflex PF-50 90325 Series 1-Row Header Solder Brass Tube Through Hole Palladium-Nickel Polybutylene Terephthalate (PBT), Glass Filled 4-Position Board to Cable/Wire 0.252 6.40mm Height
0903257004 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the Picoflex PF-50 90325 Series of products.It is possible for the device to be used for the application Automotive, General Purpose, Industrial, Medical.A number of features make it more powerful because of its Board Lock feature.There is no operating temperature for the device.
0903257004 Features
Picoflex PF-50 90325 series
0903257004 Applications
There are a lot of Molex
0903257004 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
