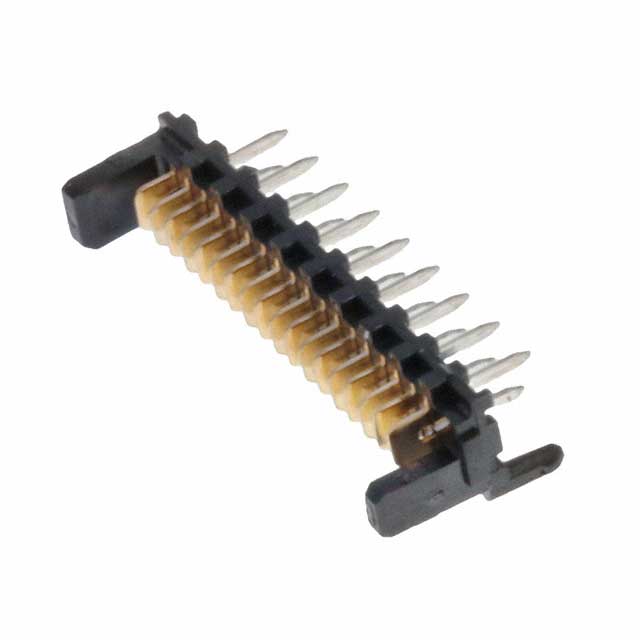

0903253018
Or copy the link below:
- Mfr.Part #
- 0903253018
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 18POS 1.27MM
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Mixed Contacts :
- No
- Filter Feature :
- No
- Feature :
- Board Lock
- DIN Conformance :
- No
- Style :
- Board to Cable/Wire
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Termination :
- Solder
- Current Rating (Amps) :
- 1.2A
- Contact Finish Thickness - Mating :
- 24.0μin 0.61μm
- Insulation Height :
- 0.252 6.40mm
- UL Flammability Code :
- 94V-0
- Number of Positions Loaded :
- All
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Shrouding :
- Shrouded - 2 Wall
- Contact Shape :
- RECTANGULAR
- Contact Length - Post :
- 0.130 3.30mm
- Insulation Color :
- Black
- Series :
- Picoflex PF-50 90325
- Packaging :
- Bulk
- Connector Type :
- Header
- Pitch - Mating :
- 0.050 1.27mm
- Fastening Type :
- Push-Pull
- Number of Positions :
- 18
- RoHS Status :
- ROHS3 Compliant
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Finish - Mating :
- Palladium-Nickel
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~105°C
- Additional Feature :
- LOW PROFILE, POLARIZED
- Factory Lead Time :
- 30 Weeks
- Contact Material :
- Brass
- Pbfree Code :
- yes
- Number of Rows :
- 1
- Contact Type :
- Male Blade
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 250V
- IEC Conformance :
- No
- Datasheets
- 0903253018
0903253018 Documents
Picoflex PF-50 90325 Series 1-Row Header Solder Brass Bulk Through Hole Palladium-Nickel Polybutylene Terephthalate (PBT), Glass Filled 18-Position Board to Cable/Wire 0.252 6.40mm Height
0903253018 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Picoflex PF-50 90325 Series.Furthermore, there are other features such as LOW PROFILE, POLARIZED, to name a few.There is the possibility of using the device for Automotive, General Purpose, Industrial, Medical.In many ways, Board Lock makes it more powerful.Operating temperature is set to -40°C~105°C.
0903253018 Features
Picoflex PF-50 90325 series
0903253018 Applications
There are a lot of Molex
0903253018 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
