0903253010
Or copy the link below:
- Mfr.Part #
- 0903253010
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description

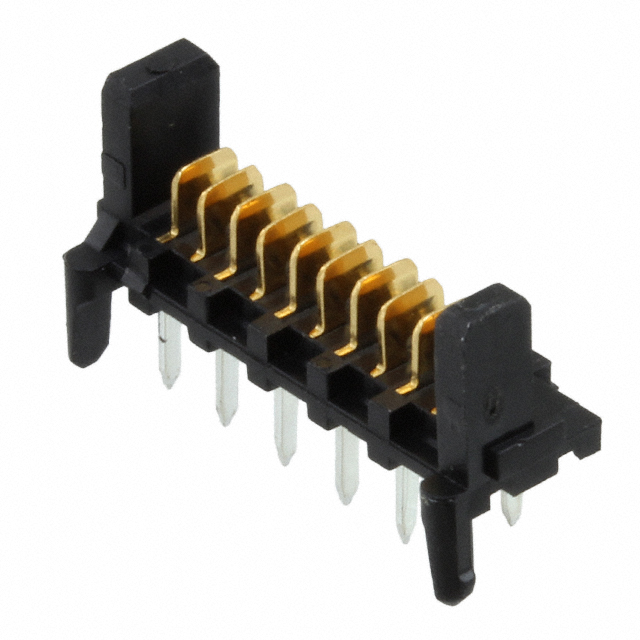

- CONN HEADER VERT 10POS 1.27MM
- Stock
- 524
- In Stock ：
- 524
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Feature :
- Board Lock
- Pitch - Mating :
- 0.050 1.27mm
- Number of Rows :
- 1
- Contact Finish Thickness - Mating :
- 24.0μin 0.61μm
- Series :
- Picoflex PF-50 90325
- Current Rating (Amps) :
- 1.2A
- Number of Positions :
- 10
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Packaging :
- Bulk
- Operating Temperature :
- -40°C~105°C
- Filter Feature :
- No
- Termination :
- Solder
- UL Flammability Code :
- 94V-0
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Factory Lead Time :
- 30 Weeks
- Additional Feature :
- LOW PROFILE, POLARIZED
- Insulation Height :
- 0.252 6.40mm
- Fastening Type :
- Push-Pull
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Type :
- Male Blade
- Contact Finish - Mating :
- Palladium-Nickel
- Contact Length - Post :
- 0.130 3.30mm
- IEC Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- Mounting Type :
- Through Hole
- Shrouding :
- Shrouded - 2 Wall
- Pbfree Code :
- yes
- Connector Type :
- Header
- Contact Material :
- Brass
- MIL Conformance :
- No
- Insulation Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- RECTANGULAR
- Voltage - Rated :
- 250V
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- 0903253010
Picoflex PF-50 90325 Series 1-Row Header Solder Brass Bulk Through Hole Palladium-Nickel Polybutylene Terephthalate (PBT), Glass Filled 10-Position Board to Cable/Wire 0.252 6.40mm Height
0903253010 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Picoflex PF-50 90325 Series.Among other features are LOW PROFILE, POLARIZED, to name only a few.The device may be used for the following applications: Automotive, General Purpose, Industrial, Medical.It is more powerful in many ways due to its Board Lock feature.It operates at an operating temperature of -40°C~105°C.
0903253010 Features
Picoflex PF-50 90325 series
0903253010 Applications
There are a lot of Molex
0903253010 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
