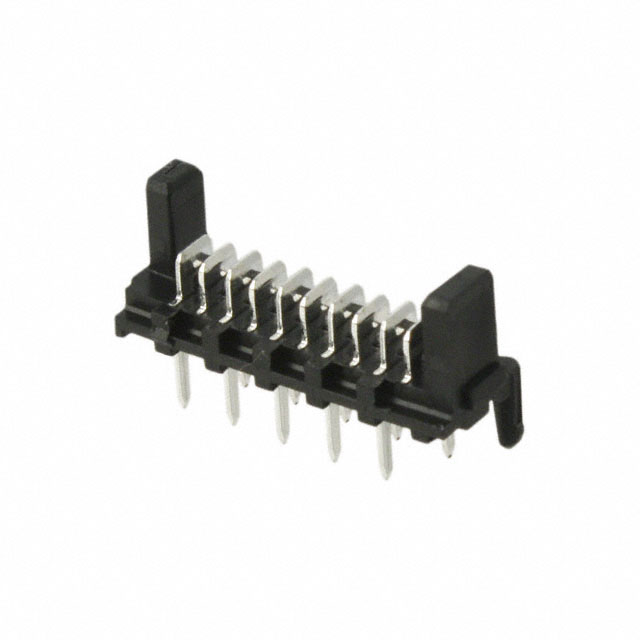

0903250010
Or copy the link below:
- Mfr.Part #
- 0903250010
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 1.27MM
- Stock
- 7,102
- In Stock ：
- 7,102
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Additional Feature :
- LOW PROFILE, POLARIZED
- Contact Shape :
- RECTANGULAR
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Pbfree Code :
- yes
- Fastening Type :
- Push-Pull
- Number of Positions :
- 10
- Factory Lead Time :
- 31 Weeks
- Number of Rows :
- 1
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- 1.2A
- Series :
- Picoflex PF-50 90325
- Feature :
- Board Lock
- Contact Material :
- Brass
- Mixed Contacts :
- No
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Applications :
- Automotive, General Purpose, Industrial, Medical
- UL Flammability Code :
- 94V-0
- Contact Finish - Mating :
- Tin
- Filter Feature :
- No
- Shrouding :
- Shrouded - 2 Wall
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Connector Type :
- Header
- Insulation Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.252 6.40mm
- RoHS Status :
- ROHS3 Compliant
- Style :
- Board to Cable/Wire
- Pitch - Mating :
- 0.050 1.27mm
- MIL Conformance :
- No
- Contact Type :
- Male Blade
- Contact Length - Post :
- 0.130 3.30mm
- IEC Conformance :
- No
- Voltage - Rated :
- 250V
- Operating Temperature :
- -40°C~105°C
- Termination :
- Solder
- Datasheets
- 0903250010
0903250010 Documents
Picoflex PF-50 90325 Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 10-Position Board to Cable/Wire 0.252 6.40mm Height
0903250010 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Picoflex PF-50 90325 Series.Other features include LOW PROFILE, POLARIZED, to name just a few.There are a variety of possible applications for this device, including Automotive, General Purpose, Industrial, Medical.Several benefits come from the Board Lock feature.Devices operate at -40°C~105°C operating temperatures.
0903250010 Features
Picoflex PF-50 90325 series
0903250010 Applications
There are a lot of Molex
0903250010 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
