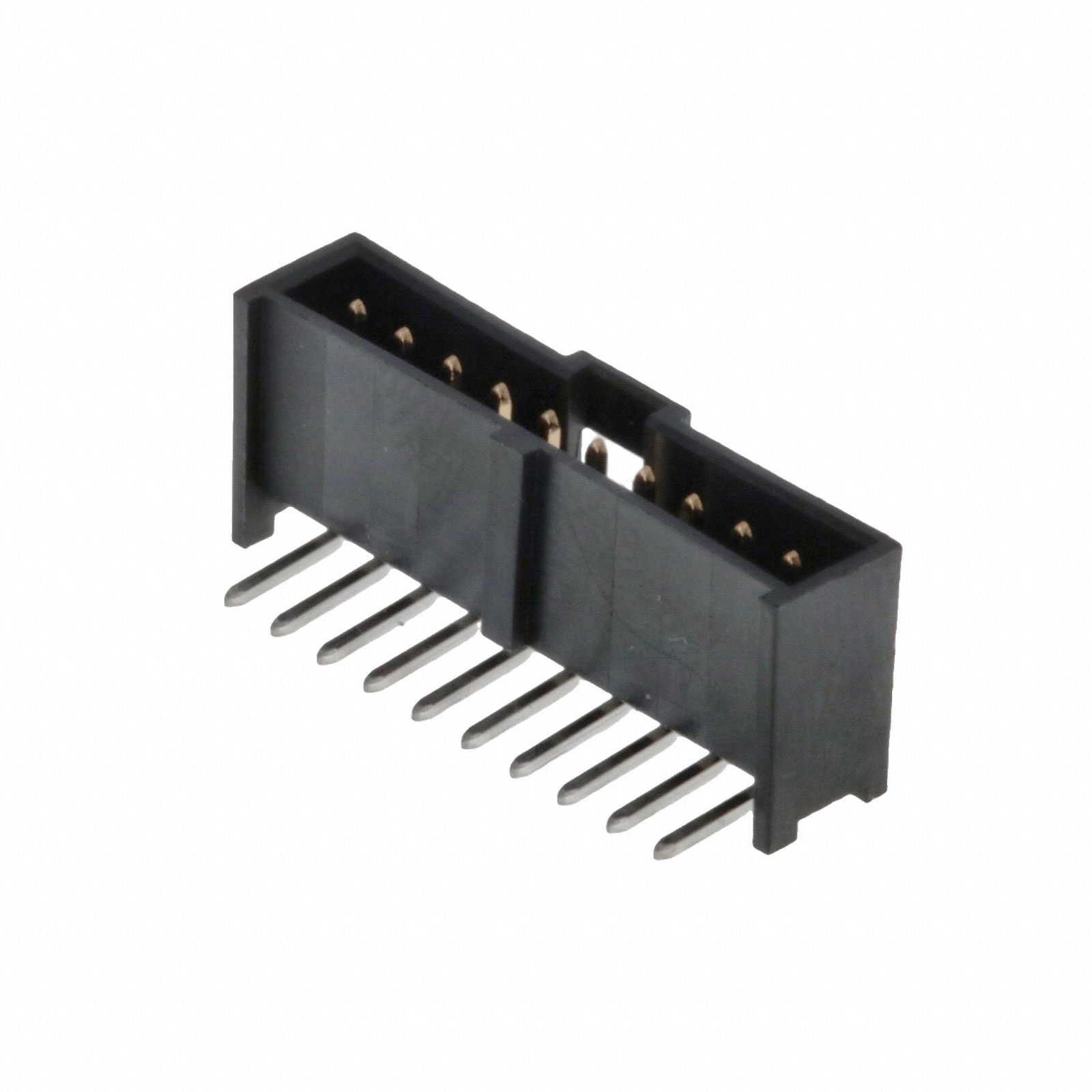

0901362210
Or copy the link below:
- Mfr.Part #
- 0901362210
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 10POS 2.54MM
- Stock
- 1,434
- In Stock ：
- 1,434
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole, Right Angle
- Connector Type :
- Header
- Insulation Material :
- Polyester, Glass Filled
- Contact Length - Post :
- 0.114 2.90mm
- Contact Finish - Mating :
- Gold
- Contact Length - Mating :
- 0.266 6.75mm
- Insulation Color :
- Black
- Number of Positions :
- 10
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Contact Finish - Post :
- Tin
- Number of Rows :
- 1
- Factory Lead Time :
- 11 Weeks
- Number of Positions Loaded :
- All
- Series :
- C-Grid III 90136
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Material :
- Brass
- Contact Type :
- Male Pin
- Contact Shape :
- Square
- Fastening Type :
- Latch Holder
- Insulation Height :
- 0.284 7.21mm
- Pitch - Mating :
- 0.100 2.54mm
- Packaging :
- Tray
- Applications :
- Automotive, General Purpose
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 0901362210
C-Grid III 90136 Series 1-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyester, Glass Filled 10-Position Board to Cable/Wire 0.284 7.21mm Height
0901362210 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the C-Grid III 90136 Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive, General Purpose.
0901362210 Features
C-Grid III 90136 series
0901362210 Applications
There are a lot of Molex
0901362210 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
