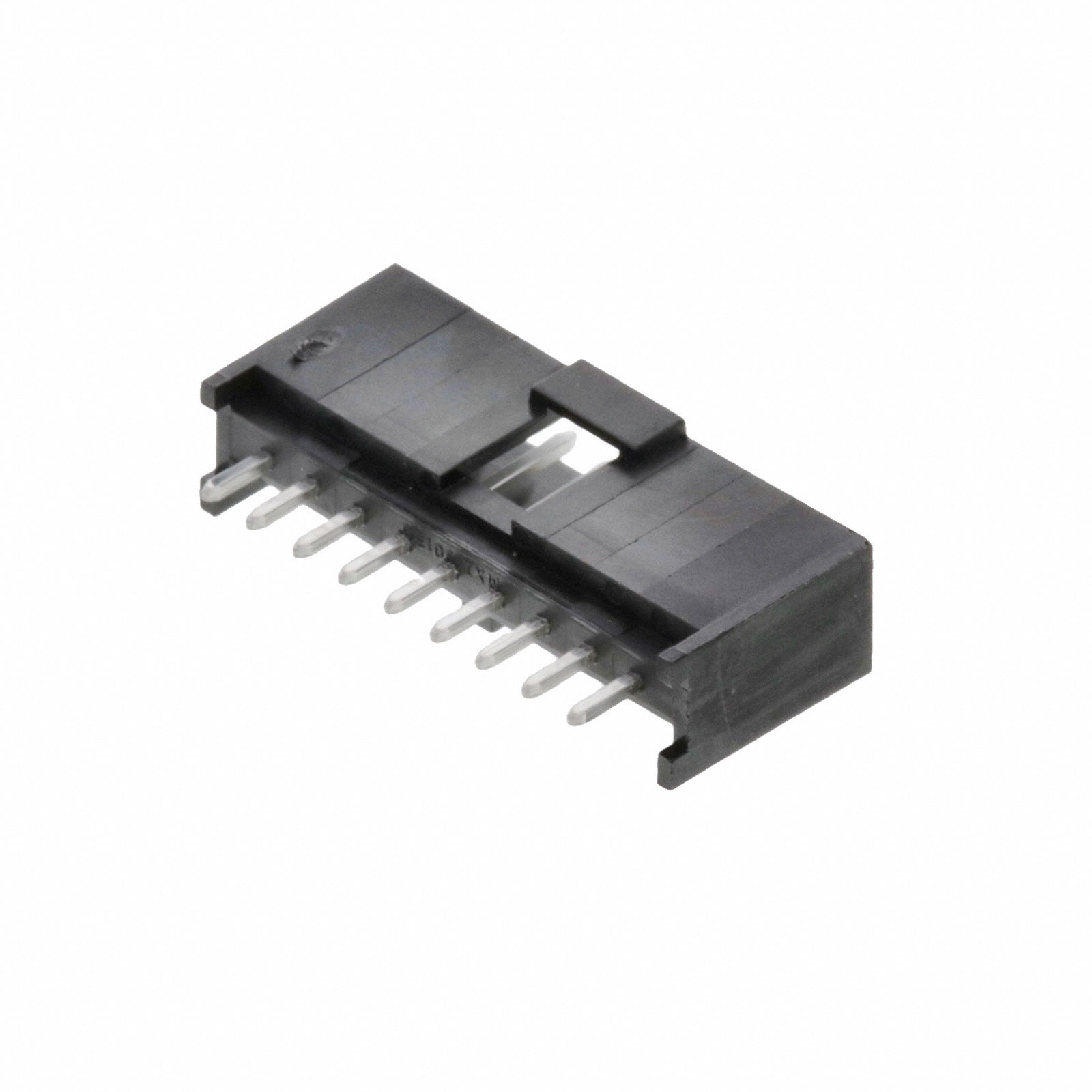

0901361109
Or copy the link below:
- Mfr.Part #
- 0901361109
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 9POS 2.54MM
- Stock
- 1,356
- In Stock ：
- 1,356
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Number of Positions :
- 9
- Fastening Type :
- Latch Holder
- Insulation Material :
- Polyester, Glass Filled
- Style :
- Board to Cable/Wire
- Insulation Color :
- Black
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Through Hole
- Packaging :
- Tray
- Insulation Height :
- 0.429 10.90mm
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Series :
- C-Grid III 90136
- Contact Length - Post :
- 0.114 2.90mm
- Number of Positions Loaded :
- All
- Number of Rows :
- 1
- Factory Lead Time :
- 12 Weeks
- Applications :
- Automotive, General Purpose
- Material Flammability Rating :
- UL94 V-0
- Overall Contact Length :
- 0.510 12.95mm
- Connector Type :
- Header
- Pitch - Mating :
- 0.100 2.54mm
- Contact Length - Mating :
- 0.266 6.75mm
- Termination :
- Solder
- Shrouding :
- Shrouded - 4 Wall
- Contact Shape :
- Square
- Datasheets
- 0901361109
C-Grid III 90136 Series 1-Row Header Solder Brass Tray Through Hole Tin Polyester, Glass Filled 9-Position Board to Cable/Wire 0.429 10.90mm Height
0901361109 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the C-Grid III 90136 Series of products.Automotive, General Purpose is a possible application for the device.
0901361109 Features
C-Grid III 90136 series
0901361109 Applications
There are a lot of Molex
0901361109 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
