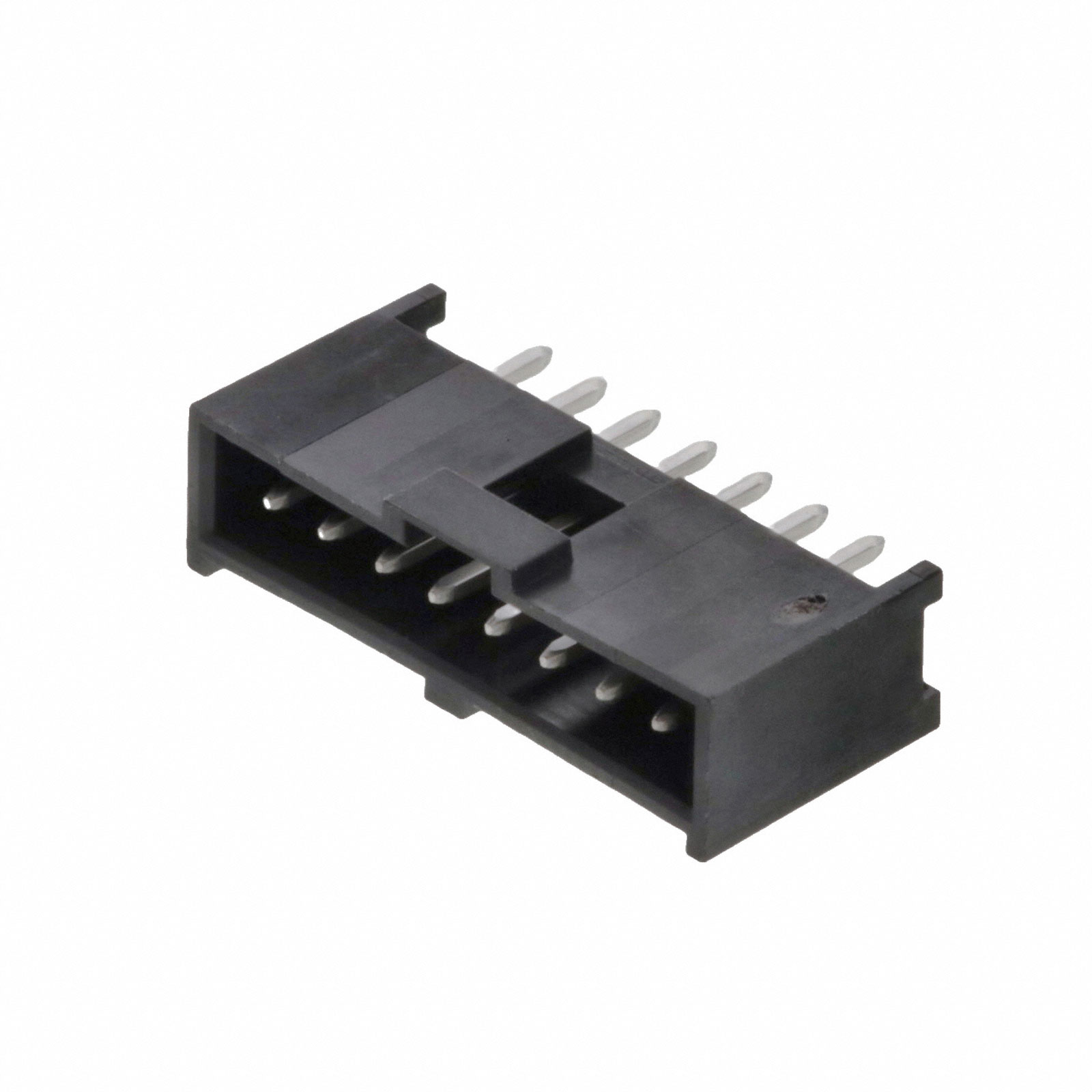

0901361108

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Applications :

Automotive, General Purpose

Insulation Color :

Black

Pitch - Mating :

0.100 2.54mm

Packaging :

Tray

Contact Finish Thickness - Mating :

118.1μin 3.00μm

Connector Type :

Header

Pbfree Code :

yes

Number of Rows :

1

Contact Material :

Brass

Factory Lead Time :

15 Weeks

JESD-609 Code :

e3

Terminal Pitch :

2.54mm

Series :

C-Grid III 90136

Mounting Type :

Through Hole

Contact Length - Mating :

0.266 6.75mm

IEC Conformance :

No

Number of Positions Loaded :

All

Style :

Board to Cable/Wire

DIN Conformance :

No

Number of Positions :

8

Shrouding :

Shrouded - 4 Wall

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

0.429 10.90mm

Contact Length - Post :

0.114 2.90mm

Contact Finish - Mating :

Tin

Insulation Material :

Polyester, Glass Filled

Fastening Type :

Latch Holder

Contact Shape :

Square

Overall Contact Length :

0.510 12.95mm

Filter Feature :

No

Mixed Contacts :

No

Contact Type :

Male Pin

MIL Conformance :

No
