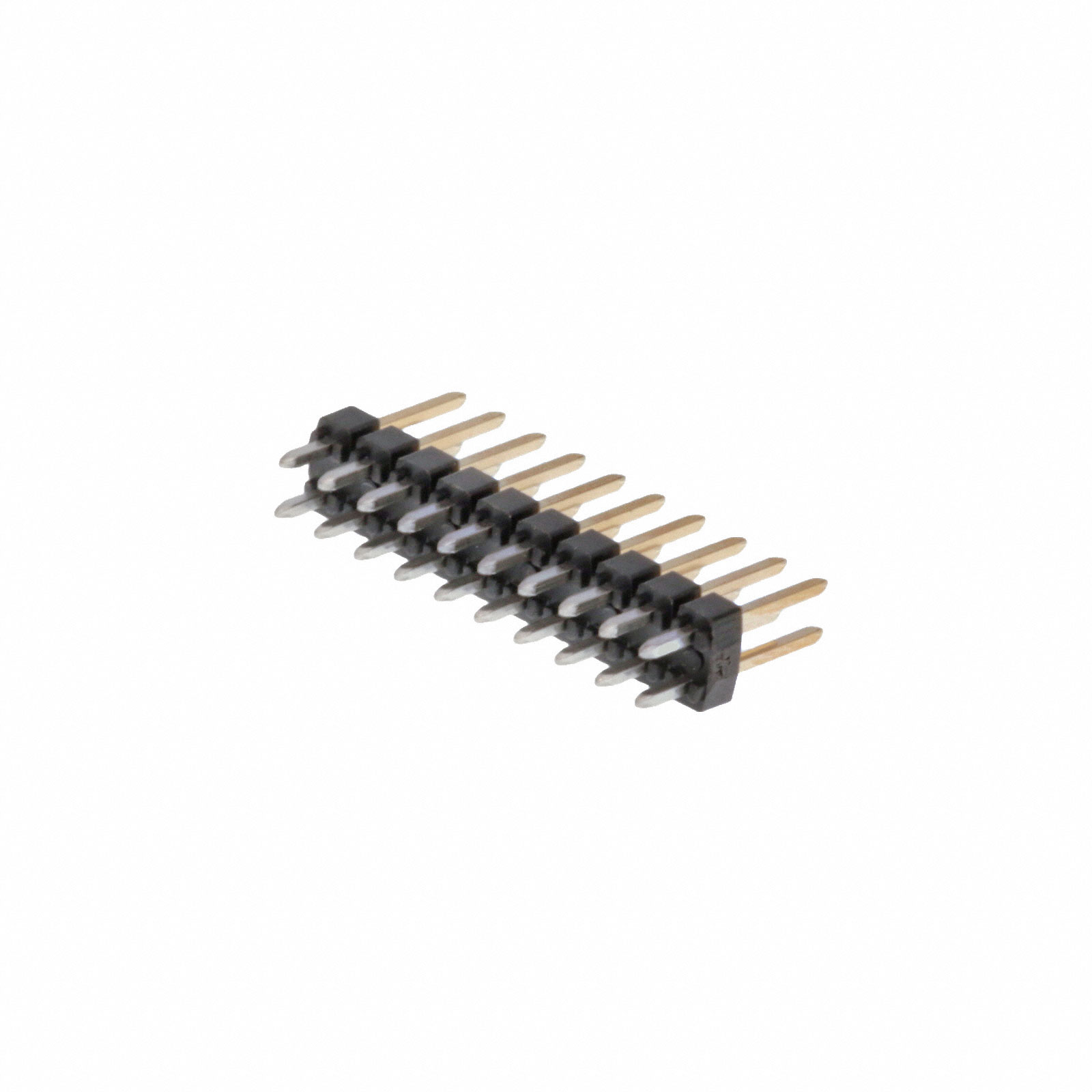

0901310770
Or copy the link below:
- Mfr.Part #
- 0901310770
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 2.54MM
- Stock
- 3,383
- In Stock ：
- 3,383
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish - Mating :
- Gold
- Number of Rows :
- 2
- Contact Shape :
- Square
- Contact Finish - Post :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header, Breakaway
- RoHS Status :
- ROHS3 Compliant
- Insulation Height :
- 0.098 2.50mm
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- Number of Positions :
- 20
- Series :
- C-Grid III 90131
- Contact Type :
- Male Pin
- Mounting Type :
- Through Hole
- Contact Length - Post :
- 0.114 2.90mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Style :
- Board to Cable/Wire
- Overall Contact Length :
- 0.478 12.15mm
- Contact Length - Mating :
- 0.266 6.75mm
- Applications :
- Automotive, General Purpose
- Fastening Type :
- Push-Pull
- Contact Material :
- Brass
- Factory Lead Time :
- 10 Weeks
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Black
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Insulation Material :
- Polyester, Glass Filled
- Shrouding :
- Unshrouded
- Datasheets
- 0901310770
C-Grid III 90131 Series 2-Row Header, Breakaway Solder Brass Bulk Through Hole Gold Polyester, Glass Filled 20-Position Board to Cable/Wire 0.098 2.50mm Height
0901310770 Overview
It comes in Header, Breakaway packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the C-Grid III 90131 Series of products.Automotive, General Purpose is a possible application for the device.
0901310770 Features
C-Grid III 90131 series
0901310770 Applications
There are a lot of Molex
0901310770 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
