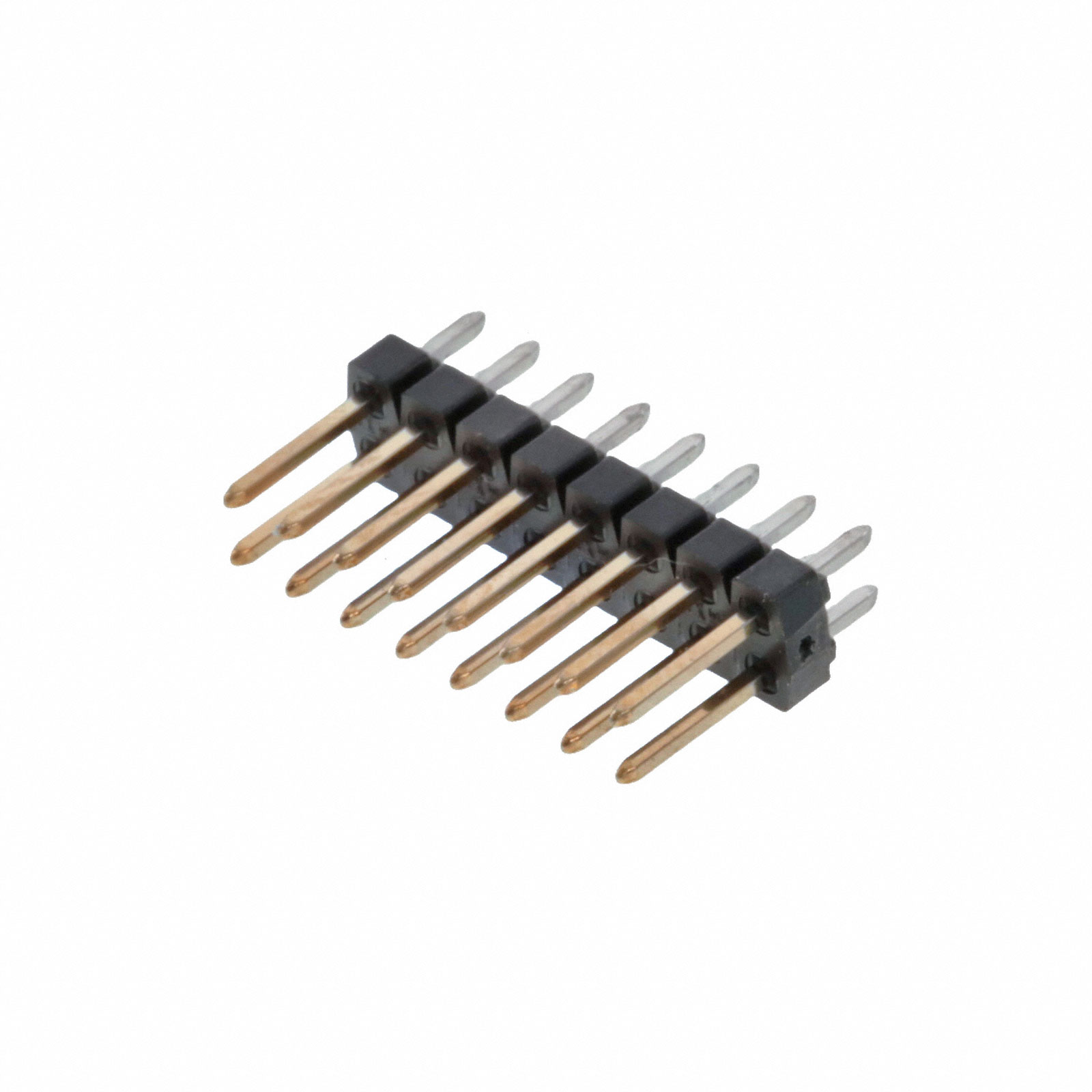

0901310768
Or copy the link below:
- Mfr.Part #
- 0901310768
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 16POS 2.54MM
- Stock
- 1,271
- In Stock ：
- 1,271
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 16
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Contact Shape :
- Square
- Contact Finish - Post :
- Tin
- Packaging :
- Bulk
- Contact Length - Post :
- 0.114 2.90mm
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Applications :
- Automotive, General Purpose
- Number of Positions Loaded :
- All
- Overall Contact Length :
- 0.478 12.15mm
- Style :
- Board to Cable/Wire
- Mounting Type :
- Through Hole
- Insulation Color :
- Black
- Insulation Height :
- 0.098 2.50mm
- Shrouding :
- Unshrouded
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polyester, Glass Filled
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Series :
- C-Grid III 90131
- Pitch - Mating :
- 0.100 2.54mm
- Factory Lead Time :
- 12 Weeks
- Connector Type :
- Header, Breakaway
- Contact Type :
- Male Pin
- Fastening Type :
- Push-Pull
- Contact Material :
- Brass
- Contact Length - Mating :
- 0.266 6.75mm
- Contact Finish - Mating :
- Gold
- Datasheets
- 0901310768
0901310768 Documents
C-Grid III 90131 Series 2-Row Header, Breakaway Solder Brass Bulk Through Hole Gold Polyester, Glass Filled 16-Position Board to Cable/Wire 0.098 2.50mm Height
0901310768 Overview
This product is packaged in a Header, Breakaway box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the C-Grid III 90131 Series.There is the possibility of using the device for Automotive, General Purpose.
0901310768 Features
C-Grid III 90131 series
0901310768 Applications
There are a lot of Molex
0901310768 Rectangular Connectors applications.
