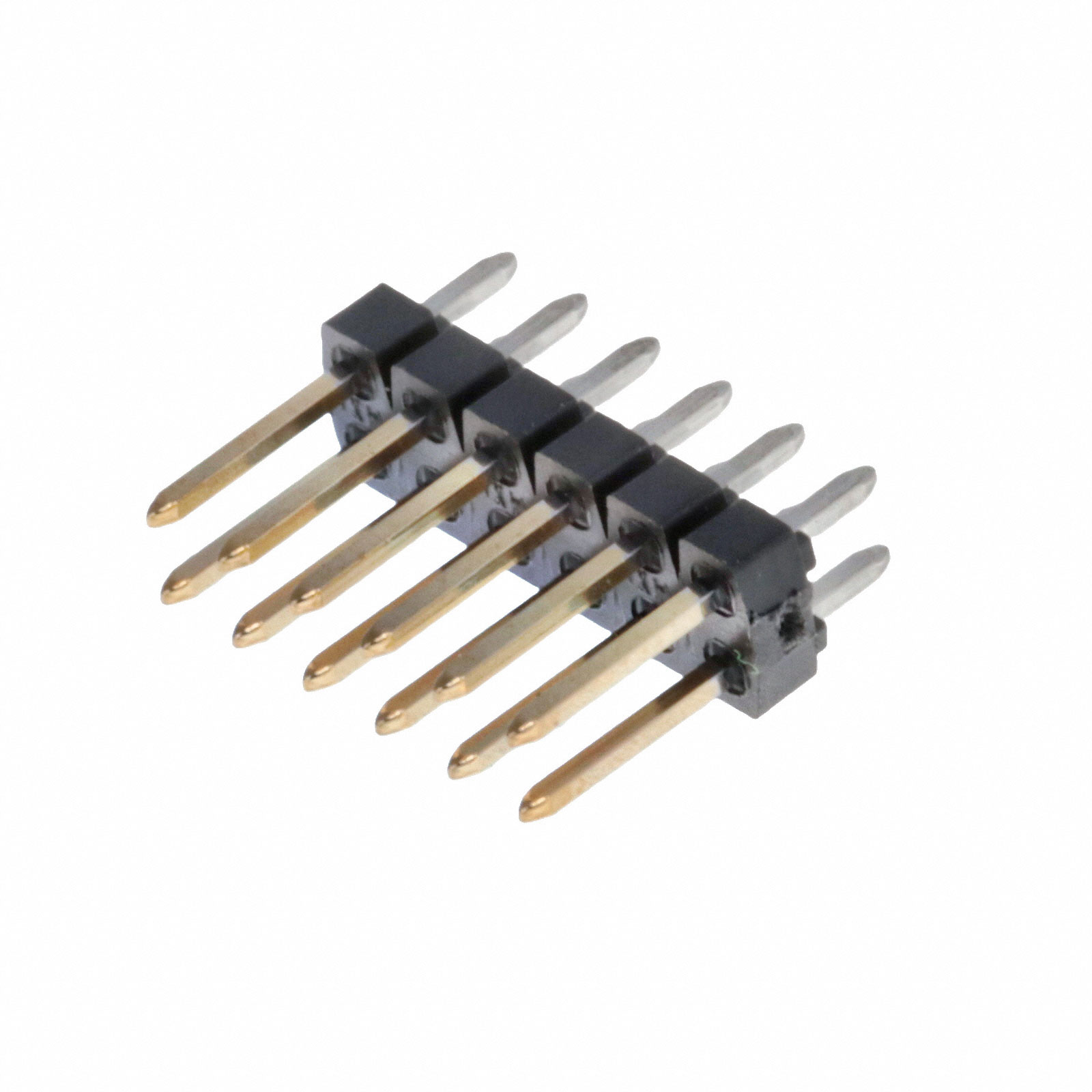

0901310766
Or copy the link below:
- Mfr.Part #
- 0901310766
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 2.54MM
- Stock
- 1,839
- In Stock ：
- 1,839
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Overall Contact Length :
- 0.478 12.15mm
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Series :
- C-Grid III 90131
- Style :
- Board to Cable/Wire
- Contact Length - Mating :
- 0.266 6.75mm
- Contact Length - Post :
- 0.114 2.90mm
- Connector Type :
- Header, Breakaway
- Contact Material :
- Brass
- Fastening Type :
- Push-Pull
- Packaging :
- Bulk
- Shrouding :
- Unshrouded
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Factory Lead Time :
- 14 Weeks
- RoHS Status :
- ROHS3 Compliant
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Material :
- Polyester, Glass Filled
- Insulation Color :
- Black
- Contact Shape :
- Square
- Number of Positions :
- 12
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Post :
- Tin
- Termination :
- Solder
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Applications :
- Automotive, General Purpose
- Insulation Height :
- 0.098 2.50mm
- Contact Type :
- Male Pin
- Mounting Type :
- Through Hole
- Datasheets
- 0901310766
0901310766 Documents
C-Grid III 90131 Series 2-Row Header, Breakaway Solder Brass Bulk Through Hole Gold Polyester, Glass Filled 12-Position Board to Cable/Wire 0.098 2.50mm Height
0901310766 Overview
The packaging contains Header, Breakaway.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number C-Grid III 90131 belongs to the C-Grid III 90131 Series.In addition to Automotive, General Purpose, there are other possible applications for the device.
0901310766 Features
C-Grid III 90131 series
0901310766 Applications
There are a lot of Molex
0901310766 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
