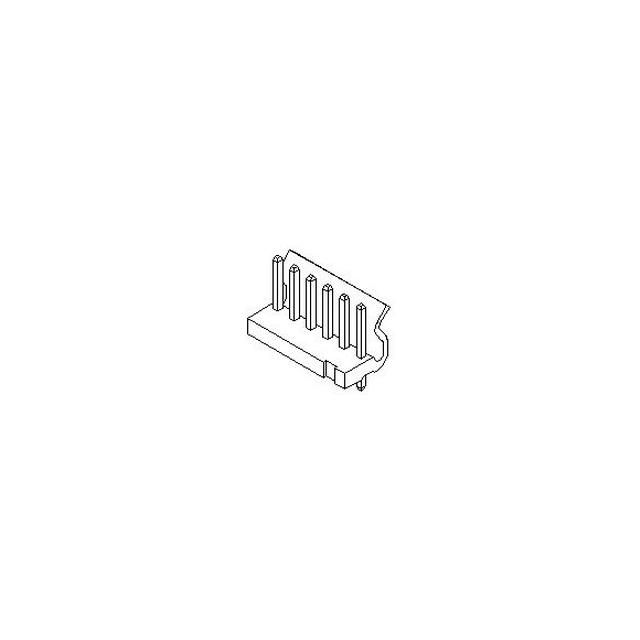

09-65-2048

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Connector contact surface :

Tin

Nominal voltage :

250V

No. of rows :

1

Connection :

Soldering

Operating Temp Range :

-40C to 105C

Pitch :

3.9600 mm

Number of Contact Rows :

1

Operating Temperature :

-40 to 105 °C

Mounting :

Through Hole

Product Height (mm) :

13.85(mm)

Voltage Rating Max :

250V

Number of Rows :

1

Nominal current - rounded value :

7A

Product Status :

Active

Current Rating :

7.0A

Base/Housing Material :

Nylon 66

Housing Material :

Nylon 6/6

Contact Plating :

Tin

Housing Color :

Natural

Current Rating (Max) :

7/Contact(A)

Manufacturer part # :

09652048

RoHS Status :

RoHS Compliant

Min. temperature :

-40°C

Series :

KK 396

Product Depth (mm) :

10.75(mm)

Nominal current :

7A

Mounting Style :

Through Hole

Body Orientation :

Straight

Case material :

Nylon (NL)

Orientation :

Vertical

Pitch (mm) :

3.96(mm)

Termination Method :

Solder

Board contact surface :

Tin

Contact Resistance Max :

10(mohm)

Max. temperature :

+105°C

Packaging :

Box-packed

Product Length :

15.08 mm

Flammability :

94V-2

Application :

Power

Total number of pins :

4

Number of Contacts :

4(POS)

Features :

+ locking mechanism

CS :

3.96mm

Content :

1pc(s)

Product Length (mm) :

15.08(mm)

Gender :

Header

Connector System :

Wire to Board

Type :

Molex MOL Power and Signal Sol.

Mounting Type :

Through Hole

Contact Material :

Brass

Packaging type :

Bag
