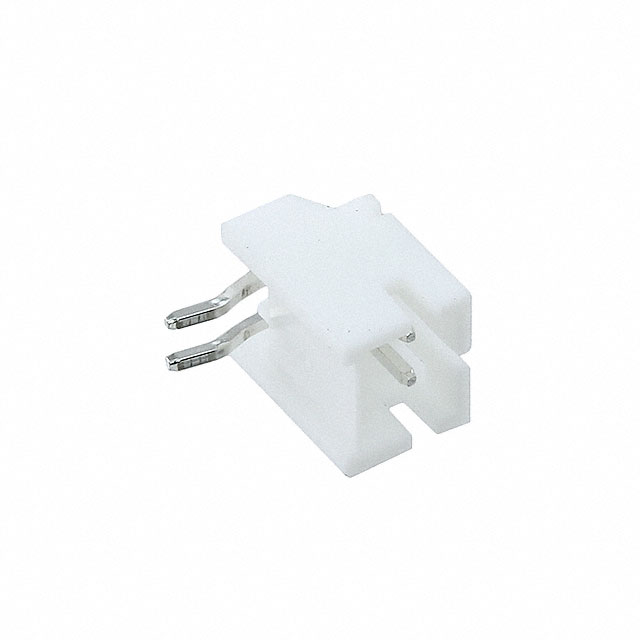

0894010210

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Voltage - Rated :

250V

Contact Finish Thickness - Mating :

50.0μin 1.27μm

Flammability Rating :

UL94 V-0

Min Operating Temperature :

-25°C

Mixed Contacts :

No

Number of Positions Loaded :

All

Series :

89401

HTS Code :

8536.69.40.40

Mounting Type :

Through Hole, Right Angle

DIN Conformance :

No

Radiation Hardening :

No

Fastening Type :

Detent Lock

Current Rating :

4A

Number of Circuits :

16

Contact Finish Thickness - Post :

50.0μin 1.27μm

IEC Conformance :

No

Contact Type :

Male Pin

Insulation Material :

Polyamide (PA66), Nylon 6/6

Pitch - Mating :

0.079 2.00mm

ECCN Code :

EAR99

MIL Conformance :

No

JESD-609 Code :

e3

Gender :

Male

Glow Wire Compliant :

Non-Compliant

Option :

GENERAL PURPOSE

Contact Material :

Brass

Housing Material :

Polyamide

Contact Finish - Mating :

Tin

UL Flammability Code :

94V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Color :

Natural

Max Operating Temperature :

85°C

Mount :

Through Hole

Material Flammability Rating :

UL94 V-0

Number of Positions :

2

Lead Pitch :

2mm

Packaging :

Bulk

Contact Shape :

Square

Orientation :

Vertical

Pbfree Code :

yes

Contact Length - Post :

0.118 3.00mm

Filter Feature :

No

Termination :

Kinked Pin, Solder

Additional Feature :

LATCHED

RoHS Status :

ROHS3 Compliant

Insulation Height :

0.199 5.05mm

Connector Type :

Header

Voltage - Rated DC :

250V

Number of Rows :

1

Style :

Board to Cable/Wire

Shrouding :

Shrouded - 4 Wall
