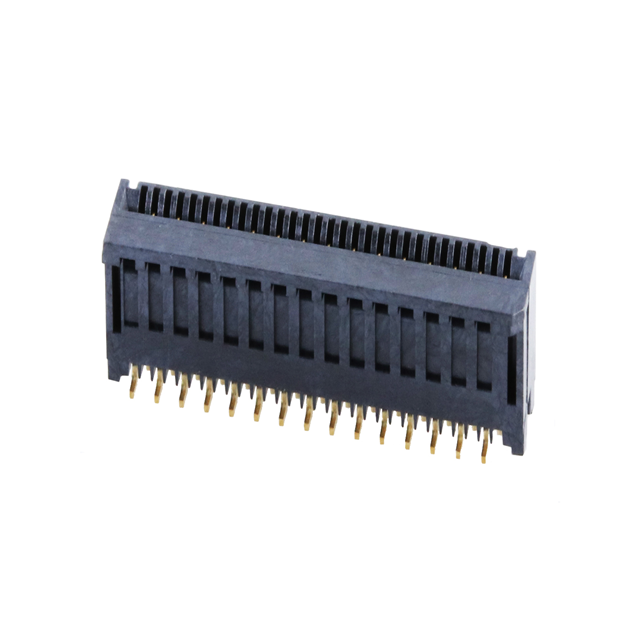

0781273020
Or copy the link below:
- Mfr.Part #
- 0781273020
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN 0.5 FPC ZIF ST AU TP 30CKT
- Stock
- 10,283
- In Stock ：
- 10,283
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Series :
- Easy-On 78127
- Mounting Type :
- Surface Mount
- Connector Type :
- FFC/FPC CONNECTOR
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 12 Weeks
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Termination :
- Solder
- Housing Color :
- Black
- Current Rating (Amps) :
- 0.5A
- Cable End Type :
- Tapered
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Voltage - Rated :
- 50V
- Packaging :
- Tape and Reel (TR)
- Operating Temperature :
- -40°C~85°C
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Phosphor Bronze
- Flat Flex Type :
- FFC, FPC
- Height Above Board :
- 0.161 4.10mm
- Contact Finish :
- Gold
- Mating Cycles :
- 10
- Number of Positions :
- 30
- FFC, FCB Thickness :
- 0.30mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 0.020 0.50mm
- Datasheets
- 0781273020
0781273020 Documents
Easy-On 78127 Series FFC, FPC Contacts, Vertical - 1 Sided Tape & Reel (TR) 0.020 0.50mm Solder 30 Positions Surface Mount Gold -40°C~85°C 0.5A
0781273020 Overview
Packaging is FFC/FPC CONNECTOR.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the Easy-On 78127 Series.Devices operate at -40°C~85°C operating temperatures.
0781273020 Features
Easy-On 78127 series
0781273020 Applications
There are a lot of Molex
0781273020 FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
