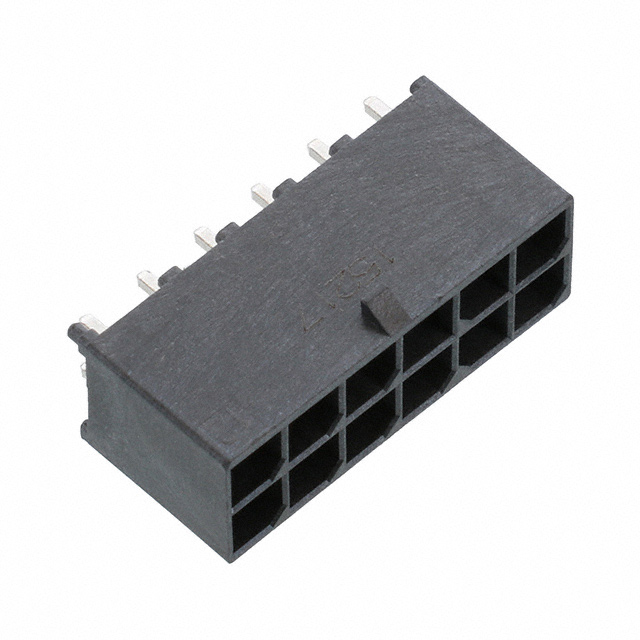

0768290112
Or copy the link below:
- Mfr.Part #
- 0768290112
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 5.7MM
- Stock
- 714
- In Stock ：
- 714
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Square
- Number of Positions :
- 12
- Connector Type :
- Header
- ECCN Code :
- EAR99
- Termination :
- Solder
- Feature :
- Board Guide, Glow Wire Compliant
- Pitch - Mating :
- 0.224 5.70mm
- Contact Finish Thickness - Post :
- 60.0μin 1.52μm
- Series :
- Mega-Fit
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- Automotive, General Purpose, Industrial, Telecommunications
- Insulation Color :
- Black
- Contact Length - Post :
- 0.147 3.73mm
- Factory Lead Time :
- 11 Weeks
- Style :
- Board to Cable/Wire
- RoHS Status :
- ROHS3 Compliant
- Shrouding :
- Shrouded - 4 Wall
- Row Spacing - Mating :
- 0.224 (5.70mm)
- Number of Rows :
- 2
- Packaging :
- Tray
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Mating :
- 60.0μin 1.52μm
- Contact Type :
- Male Pin
- Insulation Height :
- 0.583 14.80mm
- Contact Material :
- Copper
- Number of Positions Loaded :
- All
- HTS Code :
- 8536.69.40.30
- Fastening Type :
- Locking Ramp
- Datasheets
- 0768290112
Mega-Fit Series 2-Row Header Solder Copper Tray Through Hole Tin Liquid Crystal Polymer (LCP) 12-Position Board to Cable/Wire 0.583 14.80mm Height
0768290112 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the Mega-Fit Series.There is the possibility of using the device for Automotive, General Purpose, Industrial, Telecommunications.In many ways, Board Guide, Glow Wire Compliant makes it more powerful.
0768290112 Features
Mega-Fit series
0768290112 Applications
There are a lot of Molex
0768290112 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
