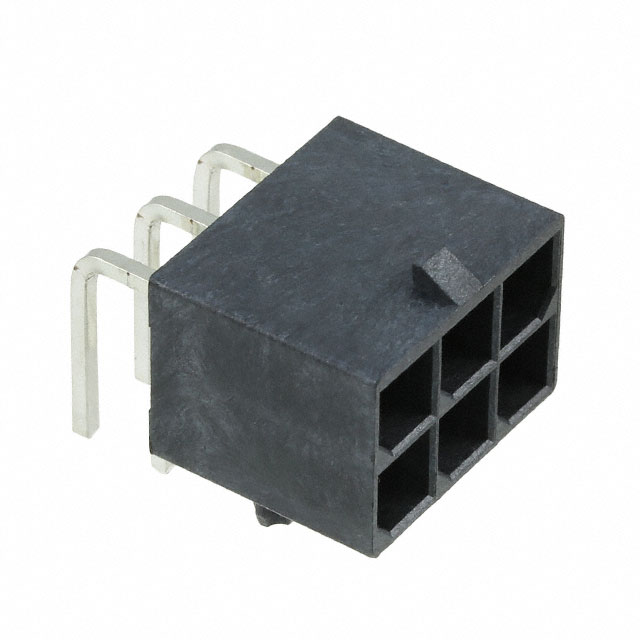

0768250006

Manufacturer :

Molex

Product Category :

Headers, Male Pins

MIL Conformance :

No

Filter Feature :

No

Connector Type :

Header

ECCN Code :

EAR99

Series :

Mega-Fit

Row Spacing - Mating :

0.224 (5.70mm)

Number of Rows :

2

Pitch - Mating :

0.224 5.70mm

Insulation Height :

0.572 14.53mm

Shrouding :

Shrouded - 4 Wall

Termination :

Solder

Contact Finish - Mating :

Tin

Empty Shell :

No

Shell Material :

POLYETHYLENE

JESD-609 Code :

e3

Contact Finish Thickness - Mating :

60.0μin 1.52μm

IEC Conformance :

No

Number of Positions :

6

RoHS Status :

ROHS3 Compliant

DIN Conformance :

No

Fastening Type :

Locking Ramp

Contact Finish Thickness - Post :

60.0μin 1.52μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Male Pin

Applications :

Automotive, General Purpose, Industrial, Telecommunications

Contact Material :

Copper

Style :

Board to Cable/Wire

Number of Positions Loaded :

All

Mixed Contacts :

No

Insulation Color :

Black

Factory Lead Time :

16 Weeks

Feature :

Board Guide, Glow Wire Compliant

Additional Feature :

POLARIZED, SHROUDED

UL Flammability Code :

94V-0

Packaging :

Tray

Pbfree Code :

yes

Contact Length - Post :

0.142 3.60mm

Insulation Material :

Liquid Crystal Polymer (LCP)

Contact Shape :

Square

Mounting Type :

Through Hole, Right Angle

Material Flammability Rating :

UL94 V-0
