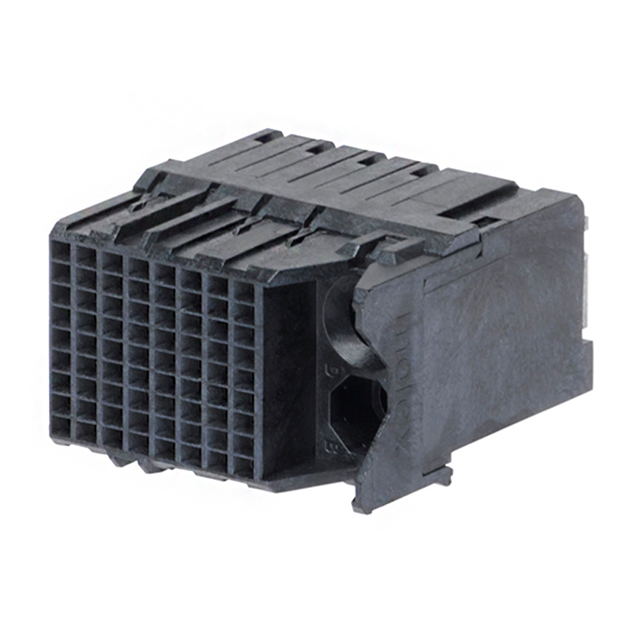

0761705036
Or copy the link below:
- Mfr.Part #
- 0761705036
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 54POS EDGE MNT
- Stock
- 588
- In Stock ：
- 588
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Connector Style :
- Impact, Guide Right
- Reliability :
- COMMERCIAL
- Contact Finish :
- Gold
- Voltage - Rated :
- 30V
- Packaging :
- Tray
- Contact Resistance :
- 10MOhm
- Mounting Option 1 :
- LOCKING
- Durability :
- 200 Cycles
- Operating Temperature :
- -55°C~85°C
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Material Flammability Rating :
- UL94 V-0
- Dielectric Withstanding Voltage :
- 500VAC V
- Length - Termination :
- 0.047 inch
- Feature :
- Board Guide
- Number of Rows :
- 9
- Number of Columns :
- 6
- Series :
- Impact 76170
- Termination :
- Press-Fit
- Pbfree Code :
- yes
- Color :
- Black
- Contact Layout, Typical :
- 18 Differential Pairs
- Insulation Resistance :
- 1000000000Ohm
- Number of Conductors :
- ONE
- Number of Positions :
- 54
- Insulation Material :
- Thermoplastic
- Connector Type :
- Receptacle, Female Sockets
- Pitch :
- 0.053 1.35mm
- Number of Positions Loaded :
- All
- Contact Pattern :
- RECTANGULAR
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reference Standard :
- UL
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Total Number of Contacts :
- 54
- Plating Thickness :
- 30μin
- Factory Lead Time :
- 13 Weeks
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- NOT SPECIFIED
- Rated Current (Signal) :
- 0.75A
- Datasheets
- 0761705036
Impact 76170 Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 54 Positions Pitch: 0.053 1.35mm -55°C~85°C Tray Board Edge, Through Hole, Right Angle
0761705036 Overview
Packaging for this item is Receptacle, Female Sockets.There is a mounting type of Board Edge, Through Hole, Right Angle for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Impact 76170 Series.In many ways, its Board Guide feature makes it more powerful.In this case, the device operates at -55°C~85°C Operating Temperature.
0761705036 Features
Impact 76170 series
0761705036 Applications
There are a lot of Molex
0761705036 Backplane Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
