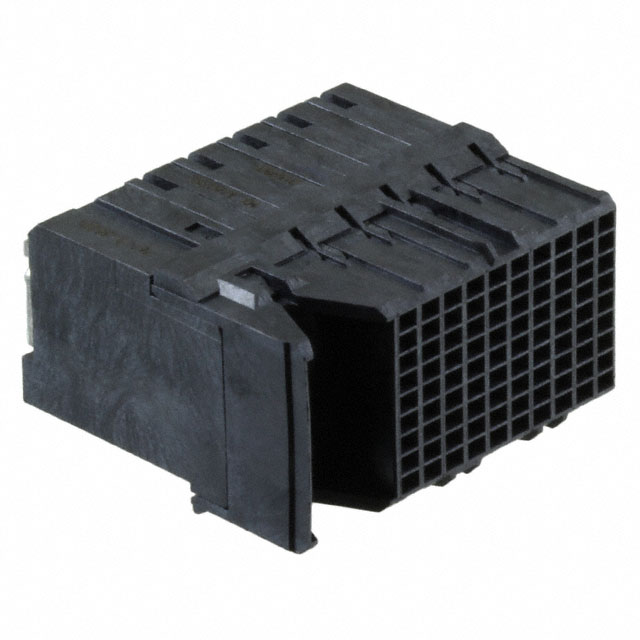

0761703420
Or copy the link below:
- Mfr.Part #
- 0761703420
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 90POS EDGE MNT
- Stock
- 14,933
- In Stock ：
- 14,933
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Reliability :
- COMMERCIAL
- Pbfree Code :
- yes
- Series :
- Impact 76170
- Number of Columns :
- 10
- Connector Type :
- Receptacle, Female Sockets
- Number of Positions Loaded :
- All
- Number of Rows :
- 9
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-609 Code :
- e3
- Plating Thickness :
- 30μin
- Number of Conductors :
- ONE
- Contact Pattern :
- RECTANGULAR
- Dielectric Withstanding Voltage :
- 500VAC V
- Feature :
- Board Guide
- Mounting Option 1 :
- LOCKING
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Material Flammability Rating :
- UL94 V-0
- Reference Standard :
- UL
- Contact Layout, Typical :
- 30 Differential Pairs
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Number of Positions :
- 90
- Pitch :
- 0.053 1.35mm
- Factory Lead Time :
- 13 Weeks
- Length - Termination :
- 0.047 inch
- Durability :
- 200 Cycles
- Color :
- Black
- Termination :
- Press-Fit
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated :
- 30V
- Contact Material :
- NOT SPECIFIED
- Rated Current (Signal) :
- 0.75A
- Operating Temperature :
- -55°C~85°C
- Contact Finish :
- Gold
- Insulation Material :
- Thermoplastic
- Connector Style :
- Impact, Guide Left
- Total Number of Contacts :
- 90
- Packaging :
- Tray
- Datasheets
- 0761703420
0761703420 Documents
Impact 76170 Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 90 Positions Pitch: 0.053 1.35mm -55°C~85°C Tray Board Edge, Through Hole, Right Angle
0761703420 Overview
You'll get Receptacle, Female Sockets packages.A Board Edge, Through Hole, Right Angle mounting type is specified for the device.A Tray case is used for packaging.The product belongs to the Impact 76170 Series.A number of aspects of its Board Guide feature make it more powerful.In this case, the device runs at -55°C~85°C Operating Temperature.
0761703420 Features
Impact 76170 series
0761703420 Applications
There are a lot of Molex
0761703420 Backplane Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
