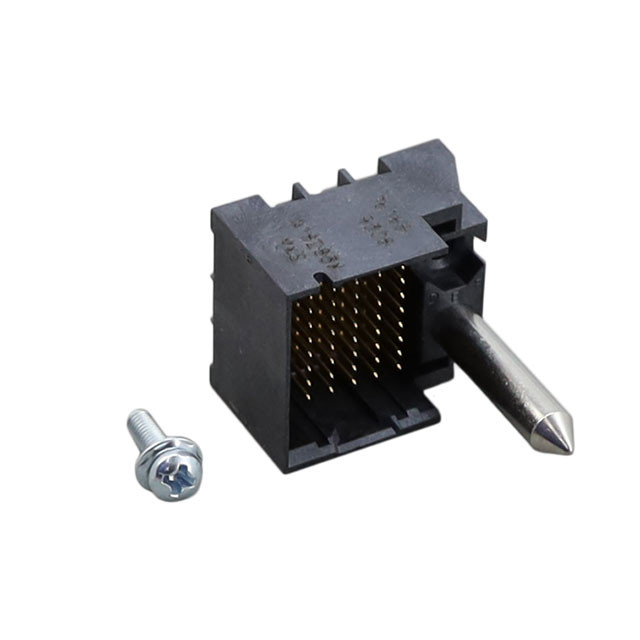

0761659308
Or copy the link below:
- Mfr.Part #
- 0761659308
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 54POS PCB
- Stock
- 211
- In Stock ：
- 211
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Number of Columns :
- 6
- Filter Feature :
- No
- Contact Finish :
- Gold
- Color :
- Black
- Termination :
- Press-Fit
- Connector Style :
- Impact, Guide Right
- Pitch :
- 0.053 1.35mm
- Option :
- GENERAL PURPOSE
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Series :
- Impact 76165
- Additional Feature :
- IMPACT, POLARIZED
- Packaging :
- Tray
- Mounting Type :
- Through Hole
- Contact Layout, Typical :
- 18 Differential Pairs
- Connector Type :
- Header, Male Pins
- Material Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Number of Rows :
- 9
- Number of Positions Loaded :
- All
- Operating Temperature :
- -55°C~85°C
- Voltage - Rated :
- 30V
- Total Number of Contacts :
- 54
- RoHS Status :
- ROHS3 Compliant
- DIN Conformance :
- No
- Pbfree Code :
- yes
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Number of Positions :
- 54
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Factory Lead Time :
- 14 Weeks
- Contact Material :
- NOT SPECIFIED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 0761659308
Impact 76165 Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 54 Positions Pitch: 0.053 1.35mm -55°C~85°C Tray Through Hole
0761659308 Overview
The product is packaged in Header, Male Pins.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the Impact 76165 Series.To name a few, there is also IMPACT, POLARIZED.As a result, the device runs at -55°C~85°C Operating Temperature.
0761659308 Features
Impact 76165 series
0761659308 Applications
There are a lot of Molex
0761659308 Backplane Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
