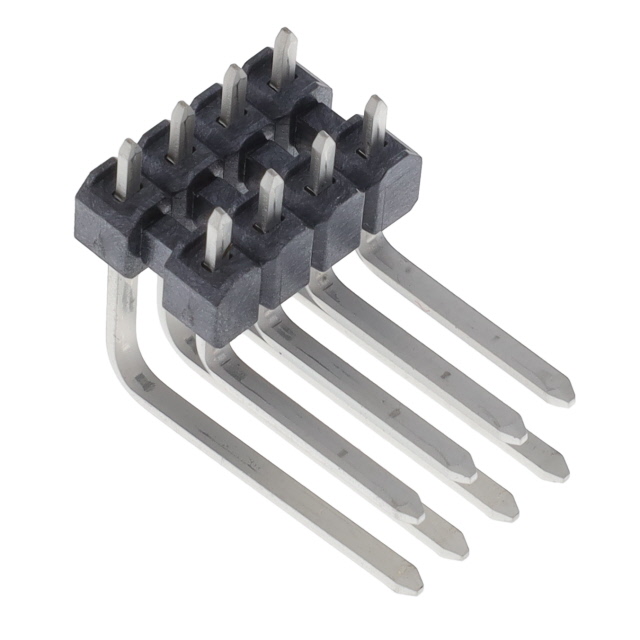

0759001141

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Fastening Type :

Push-Pull

Insulation Color :

Black

Contact Type :

Male Pin

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Packaging :

Tube

Number of Rows :

2

Contact Finish Thickness - Post :

100.0μin 2.54μm

Insulation Height :

0.177 4.50mm

Contact Finish - Mating :

Tin

Style :

Board to Cable/Wire

Connector Type :

Header, Breakaway

Termination :

Solder

Row Spacing - Mating :

0.236 (6.00mm)

Pbfree Code :

yes

IEC Conformance :

No

Contact Length - Post :

0.120 3.05mm

Filter Feature :

No

Number of Positions :

8

Contact Finish Thickness - Mating :

100.0μin 2.54μm

Factory Lead Time :

9 Weeks

Applications :

Automotive

Option :

GENERAL PURPOSE

Shrouding :

Unshrouded

Contact Material :

Cartridge Brass

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Contact Shape :

Square

DIN Conformance :

No

Number of Positions Loaded :

All

Mixed Contacts :

No

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole, Right Angle

Terminal Pitch :

3.5mm

Pitch - Mating :

0.138 3.50mm

Series :

MX150 75900

MIL Conformance :

No
