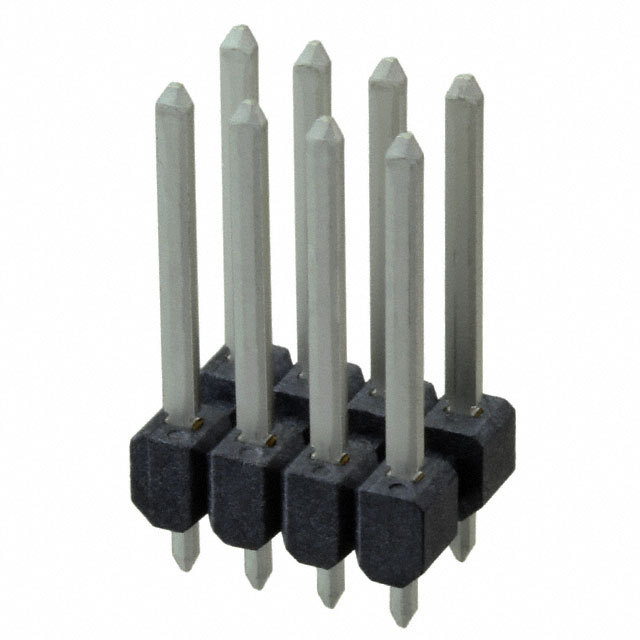

0757575141

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Termination :

Solder

Pbfree Code :

yes

Contact Material :

Cartridge Brass

Contact Length - Post :

0.120 3.05mm

Row Spacing - Mating :

0.236 (6.00mm)

Packaging :

Tube

Material Flammability Rating :

UL94 V-0

RoHS Status :

ROHS3 Compliant

Option :

GENERAL PURPOSE

IEC Conformance :

No

Number of Rows :

2

Terminal Pitch :

3.5mm

Orientation :

Vertical

Contact Type :

Male Pin

Filter Feature :

No

Contact Finish Thickness - Post :

100.0μin 2.54μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Thermoplastic

Fastening Type :

Push-Pull

Pitch - Mating :

0.138 3.50mm

Shrouding :

Unshrouded

Series :

MX150 75757

Contact Shape :

Square

Current Rating :

16A

Insulation Color :

Black

Glow Wire Compliant :

Non-Compliant

Insulation Height :

0.177 4.50mm

Voltage - Rated DC :

500V

DIN Conformance :

No

Max Operating Temperature :

125°C

Number of Positions Loaded :

All

ECCN Code :

EAR99

Factory Lead Time :

9 Weeks

Mixed Contacts :

No

Contact Finish Thickness - Mating :

100.0μin 2.54μm

Style :

Board to Cable/Wire

MIL Conformance :

No

Contact Finish - Mating :

Tin

Mounting Type :

Through Hole

Halogen Free :

Low Halogen

Number of Positions :

8

Contact Length - Mating :

0.633 16.09mm

Overall Contact Length :

0.931 23.64mm

Applications :

Automotive

Connector Type :

Header, Breakaway

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Min Operating Temperature :

-40°C
