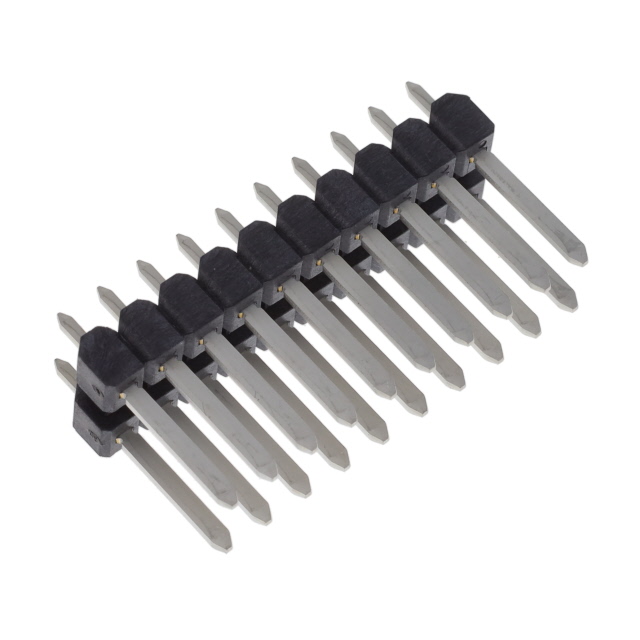

    Images are for reference only.

    Delivery：

    Payment：

    0757571101

    Share

    Or copy the link below:

    Mfr.Part #
    0757571101
    Manufacturer
    Molex
    Package / Case
    Datasheet
    Download
    Description
    CONN HEADER VERT 20POS 3.5MM
    Stock
    632
    In Stock ：
    632

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Molex
    Product Category :
    Headers, Male Pins
    Number of Positions Loaded :
    All
    Contact Length - Post :
    0.120 3.05mm
    HTS Code :
    8536.69.40.40
    ECCN Code :
    EAR99
    Insulation Height :
    0.177 4.50mm
    RoHS Status :
    ROHS3 Compliant
    Contact Type :
    Male Pin
    Contact Shape :
    Square
    Overall Contact Length :
    0.738 18.75mm
    Applications :
    Automotive
    Connector Type :
    Header, Breakaway
    Pitch - Mating :
    0.138 3.50mm
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Contact Finish Thickness - Post :
    100.0μin 2.54μm
    Pbfree Code :
    yes
    Fastening Type :
    Push-Pull
    Insulation Color :
    Black
    Option :
    GENERAL PURPOSE
    Series :
    MX150 75757
    IEC Conformance :
    No
    Insulation Material :
    Liquid Crystal Polymer (LCP), Glass Filled
    Material Flammability Rating :
    UL94 V-0
    Contact Length - Mating :
    0.441 11.20mm
    Number of Positions :
    20
    Factory Lead Time :
    9 Weeks
    Number of Rows :
    2
    DIN Conformance :
    No
    Mixed Contacts :
    No
    Termination :
    Solder
    Contact Finish - Mating :
    Tin
    Terminal Pitch :
    3.5mm
    Style :
    Board to Cable/Wire
    Mounting Type :
    Through Hole
    Row Spacing - Mating :
    0.236 (6.00mm)
    MIL Conformance :
    No
    Filter Feature :
    No
    Contact Finish Thickness - Mating :
    100.0μin 2.54μm
    Shrouding :
    Unshrouded
    Contact Material :
    Cartridge Brass
    Packaging :
    Tube
    Introducing Headers, Male Pins Molex 0757571101 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Through Hole, 0757571101 pinout, 0757571101 datasheet PDF, 0757571101 amp .Beyond Headers, Male Pins Molex 0757571101 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

    Molex 0757571101


    MX150 75757 Series 2-Row Header, Breakaway Solder Cartridge Brass Tube Through Hole Tin Liquid Crystal Polymer (LCP), Glass Filled 20-Position Board to Cable/Wire 0.177 4.50mm Height

    0757571101 Overview


    The product comes in a package of Header, Breakaway.Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the MX150 75757 Series.The device may be used for the following applications: Automotive.

    0757571101 Features


    MX150 75757 series


    0757571101 Applications


    There are a lot of Molex
    0757571101 Rectangular Connectors applications.


    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
